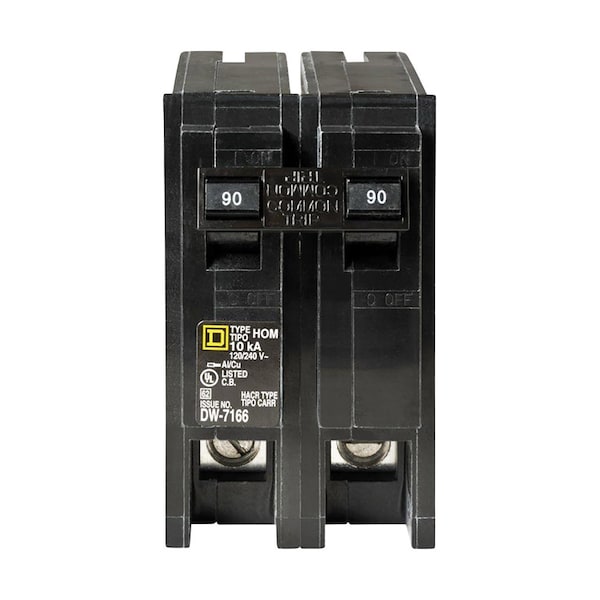

Miniature Circuit Breaker, HOM Series, 90A, 2 Pole, 120/240V AC, 10kA
Mfr # HOM290CP
Zoro # G8665670
product price:
$
71.45
/ea
Key Features
Series
HOM
Amps
90 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOM290CP
- Zoro #
- G8665670
- UPC #
- 47569062834
- Country of Origin
- Malaysia
Dimensions
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Min. Wire Size
- 4 AWG (Cu/Al)
- Max. Wire Size
- 2/0 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOM
- Amps
- 90 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Standard
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- Features
- Mercury Free
- Application
- HACR rated Applications
Description
The Square D by Schneider Electric Homeline 90 amp Two-Pole Circuit Breaker is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
- • 10000 AIR
- • Plug-on design and easy to install
- • Compatible with Homeline load centers and CSED devices
- •
- •
