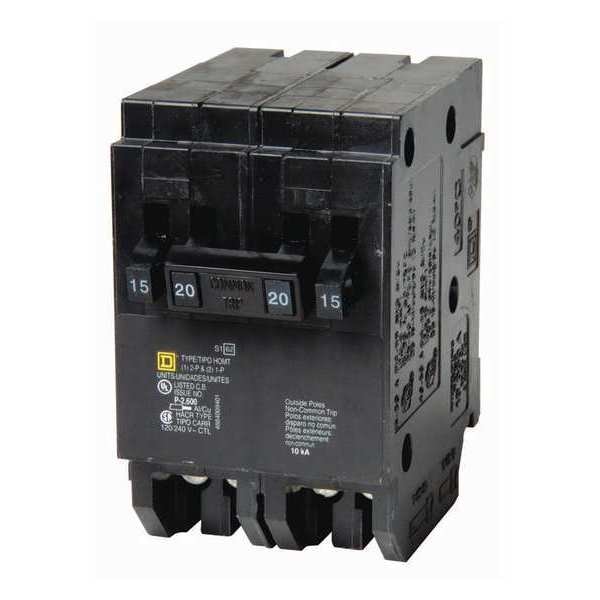

Miniature Circuit Breaker, HOMELINE Series, 15A, 2x1, 1x2 Pole, 120/240V AC, 10kA at 120V AC
Mfr # HOMT1515215
Zoro # G0841200
CAD Available
product price:Â
$
39.79
/ea
Key Features
CAD Drawing
Series
HOMELINE
Amps
15 A
Number of Poles
2x1, 1x2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Quad Tandem
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOMT1515215
- Zoro #
- G0841200
- UPC #
- 785901069355
- Country of Origin
- Korea, Republic of
Dimensions
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Min. Wire Size
- 14 AWG (Cu/Al)
- Max. Wire Size
- 8 AWG (Cu/Al)
Details
- CAD Available
- Yes
- Item
- Miniature Circuit Breaker
- Series
- HOMELINE
- Amps
- 15 A
- Number of Poles
- 2x1, 1x2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Quad Tandem
- Phase
- 1
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120V AC
- Trip Type
- Standard
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Standards
- UL Listed
- For Use With
- Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
- Application
- HACR rated Applications
Description
Miniature Circuit Breaker 120/240V 15A, Series HOM
