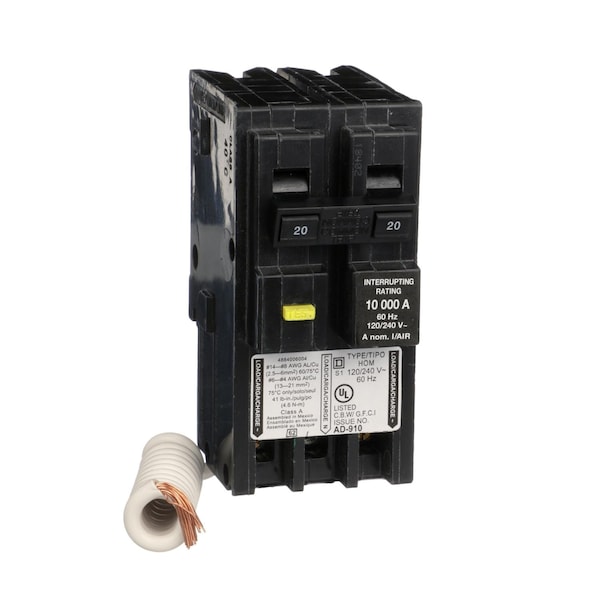

Miniature Circuit Breaker, HOMELINE Series, 20A, 2 Pole, 240V AC, 10kA at 240V AC, A Curve
Mfr # HOM220GFIC
Zoro # G3306122
product price:Â
$
223.99
/ea
Free Shipping & Returns
Key Features
Series
HOMELINE
Number of Poles
2
AC Voltage Rating
240V AC
Phase
1
Circuit Breaker Mounting Style
Plug In
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOM220GFIC
- Zoro #
- G3306122
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Min. Wire Size
- 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size
- 4 AWG (Al), 6 AWG (Cu)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOMELINE
- Amps
- 20 A
- Number of Poles
- 2
- AC Voltage Rating
- 240V AC
- Circuit Breaker Type
- Ground Fault Protecting Class A 6 mA
- Phase
- 1
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 240V AC
- Terminal Connection
- Screw Clamps
- DC Voltage Rating
- Not Rated
- Curve Type
- A
- For Use With
- Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
- Standards
- UL Listed
- Application
- HACR rated Applications
- Features
- Mercury Free
Description
Mini circuit breaker,Homeline,20A,2 p
