Shop SQUARE D
See all product information

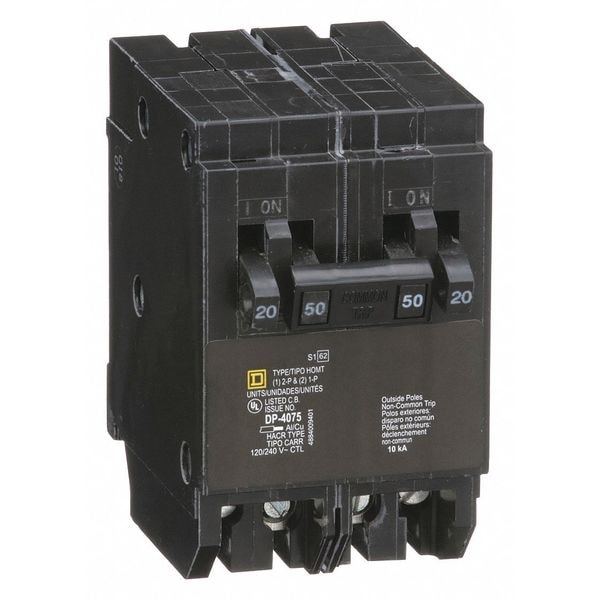

Miniature Circuit Breaker, HOMELINE Series, 20A, 2x1, 1x2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # HOMT2020250
Zoro # G0566609
CAD Available
product price:Â $47.59
/eaKey Features
CAD Drawing
Series
HOMELINE
Amps
20 A
Number of Poles
2x1, 1x2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Quad Tandem
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
HOMT2020250
Zoro #
G0566609
UPC #
785901377054
Country of Origin
Korea, Republic of
Dimensions
Width
2 in
Depth
2.98 in
Height
3.13 in
Max. Wire Size
6 AWG (Cu/Al), 8 AWG (Al)
Min. Wire Size
14 AWG (Cu), 12 AWG (Al)
Details
CAD Available
Yes
Item
Miniature Circuit Breaker
Series
HOMELINE
Amps
20 A
Number of Poles
2x1, 1x2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Quad Tandem
Phase
1
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Standard
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
Standards
UL Listed
Features
Mercury Free
Application
HACR rated Applications
Description
Miniature Circuit Breaker 120/240V 20A, Series HOM
