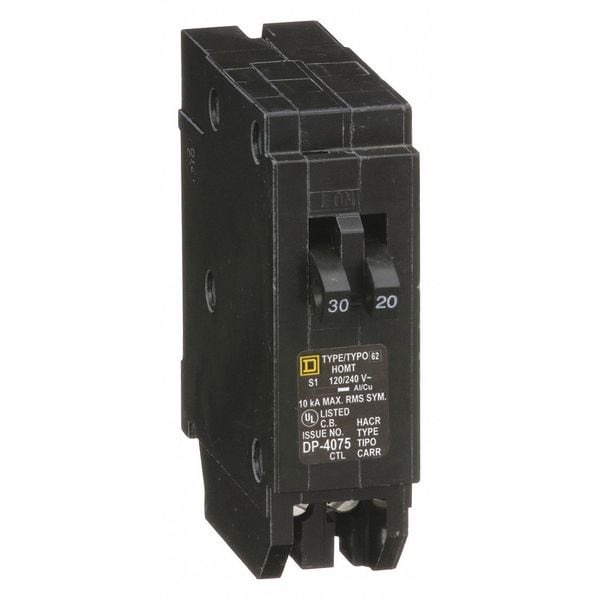

Square D Miniature Circuit Breaker, HOMELINE Series, 30A, 1 Pole, 120V AC, 10kA at 120/240V AC HOMT3020 - main

Miniature Circuit Breaker, HOMELINE Series, 30A, 1 Pole, 120V AC, 10kA at 120/240V AC

  • Mfr # HOMT3020

  • Zoro # G3156216

CAD Available
product price:  $25.35
/ea

Key Features

CAD Drawing
Series
HOMELINE
Amps
30A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Tandem
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HOMT3020
Zoro #
G3156216
UPC #
785901706366
Country of Origin
Korea, Republic of

Dimensions

Width
1 in
Depth
2.98 in
Height
3.13 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
8 AWG (Cu/Al)

Details

CAD Available
Yes
Item
Miniature Circuit Breaker
Series
HOMELINE
Amps
30A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Tandem
Phase
1
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
UL Listed
Application
HACR rated Applications
Features
Mercury Free
For Use With
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
