Shop SQUARE D

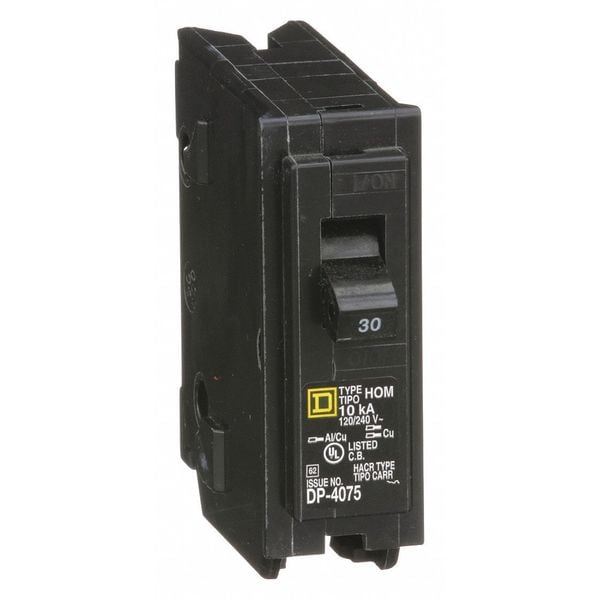

Miniature Circuit Breaker, HOMELINE Series, 30A, 1 Pole, 120V AC, 10kA at 120V AC

  • Mfr # HOM130

  • Zoro # G1854395

CAD Available
product price:
$
10.15
/ea

Key Features

CAD Drawing
Series
HOMELINE
Amps
30A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HOM130
Zoro #
G1854395
UPC #
785901065227
Country of Origin
Indonesia
CAD Available
Yes
Item
Miniature Circuit Breaker
Series
HOMELINE
Amps
30A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120V AC
Trip Type
Standard
Terminal Connection
Screw Clamp
DC Voltage Rating
Not Rated
For Use With
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
Standards
CSA Certified, HACR, UL Listed
Application
HACR rated Applications
Features
Mercury Free
Compatible Panelboard/Load Center Series
HOM
Max. Operating Temp.
104 Degrees F
Min. Operating Temp.
77 Degrees F
Short Circuit Current Rating
10 kA
Ambient Air Temperature For Operation
104°F (40°C)
Certifications
UL Listed
Tightening Torque
35.40 lbf.in (4.0 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 8)
Ratings
HACR rated
Voltage
120/240 VAC

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
