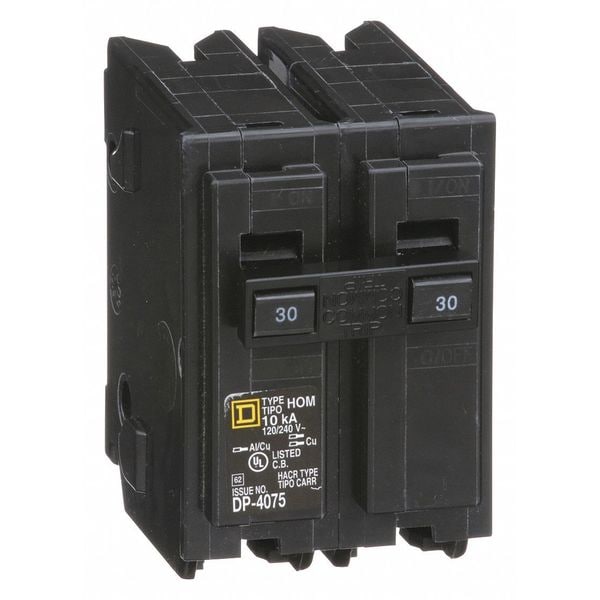

Square D Miniature Circuit Breaker, HOMELINE Series, 30A, 2 Pole, 240V AC, 10kA at 240V AC HOM230 - main

Miniature Circuit Breaker, HOMELINE Series, 30A, 2 Pole, 240V AC, 10kA at 240V AC

  • Mfr # HOM230

  • Zoro # G2125295

CAD Available
product price:  $19.85
/ea

Key Features

CAD Drawing
Series
HOMELINE
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HOM230
Zoro #
G2125295
UPC #
785901065296
Country of Origin
Mexico

Dimensions

Frame Size
100A/HOM
Width
2 in
Depth
2.98 in
Height
3.13 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Wire Size
1 x AWG 14 to AWG 8 ( aluminium/copper ); 2 x AWG 14 to AWG 10 ( copper )
Length
3.13 in

Details

Item
Miniature Circuit Breaker
Series
HOMELINE
Amps
30A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 240V AC
Trip Type
Standard
Terminal Connection
Screw Clamp
DC Voltage Rating
Not Rated
For Use With
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
Standards
CSA Certified, HACR, UL Listed
Application
HACR rated Applications
Features
Mercury Free
Max. Operating Temp.
104 Degrees F
Compatible Panelboard/Load Center Series
HOM
Min. Operating Temp.
77 Degrees F
Ambient Air Temperature For Operation
104°F (40°C)
Certifications
UL Listed
Short Circuit Current Rating
10 kA
Tightening Torque
35.40 lbf.in (4.0 N.m) 0.00 to 0.02 in² (2.5 to 10 mm²) (AWG 16 to AWG 14); 35.40 lbf.in (4.0 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4)
Ratings
HACR rated
Voltage
120/240 VAC
CAD Available
Yes

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
