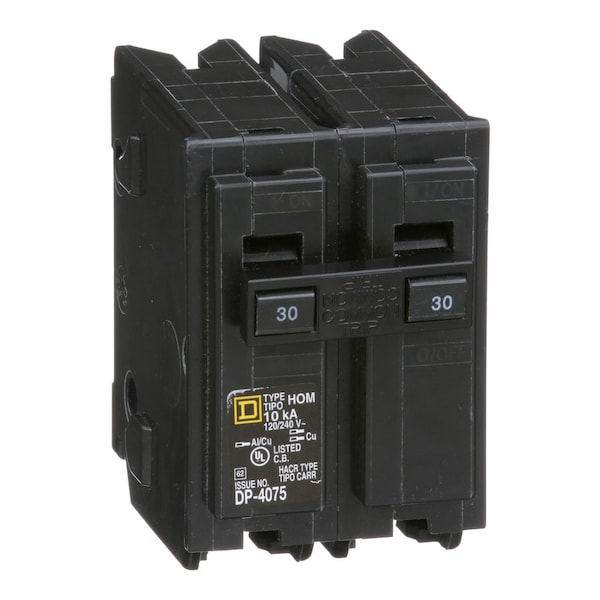

Miniature Circuit Breaker, HOMELINE Series, 30A, 2 Pole, 240V AC, 10kA at 240V AC
Mfr # HOM2305219
Zoro # G0841185
product price:Â
$
32.39
/ea
Key Features
Series
HOMELINE
Amps
30A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOM2305219
- Zoro #
- G0841185
- UPC #
- 785901304272
- Country of Origin
- Korea, Republic of
Dimensions
- Min. Wire Size
- 8 AWG (Cu/Al)
- Max. Wire Size
- 2 AWG (Cu/Al)
- Wire Size
- 1 x AWG 8 to AWG 2 ( aluminium/copper )
Details
- Item
- Miniature Circuit Breaker
- Series
- HOMELINE
- Amps
- 30A
- Number of Poles
- 2
- AC Voltage Rating
- 240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 240V AC
- Trip Type
- Standard
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- Features
- Mercury Free
- For Use With
- Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
- Application
- HACR rated Applications
- Ratings
- HACR rated
- Short Circuit Current Rating
- 10 kA
- Tightening Torque
- 35.40 lbf.in (4.0 N.m) 0.00 to 0.02 in² (2.5 to 10 mm²) (AWG 16 to AWG 14); 35.40 lbf.in (4.0 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4)
- Ambient Air Temperature For Operation
- 104°F (40°C)
Description
Miniature Circuit Breaker 120/240V 30A, Series HOM
