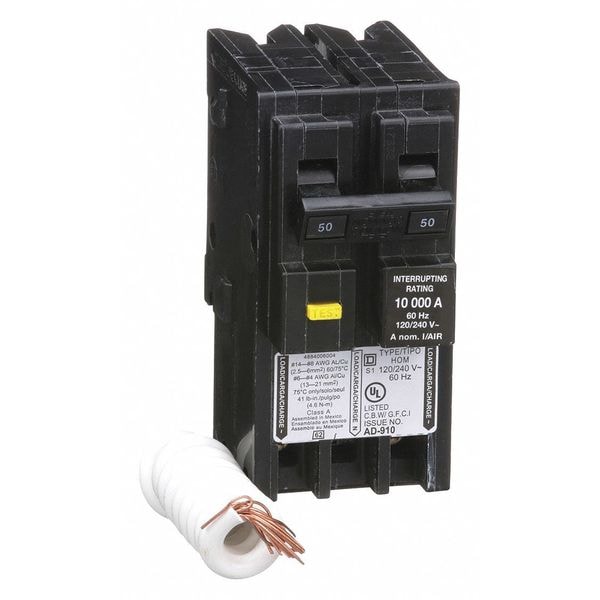

Miniature Circuit Breaker, HOMELINE Series, 50A, 2 Pole, 240V AC, 10kA at 240V AC, A Curve
Mfr # HOM250GFI
Zoro # G3329751
CAD Available
product price:Â
$
188.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
HOMELINE
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Ground Fault Protecting Class A 6 mA
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOM250GFI
- Zoro #
- G3329751
- UPC #
- 785901783572
- Country of Origin
- Korea, Republic of
Dimensions
- Frame Size
- 100A/HOM
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Max. Wire Size
- 4 AWG (Al), 6 AWG (Cu)
- Min. Wire Size
- 12 AWG (Al), 14 AWG (Cu)
- Length
- 3.1 in
Description
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA), Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.1 in, Width 2 in, Depth 3 in
