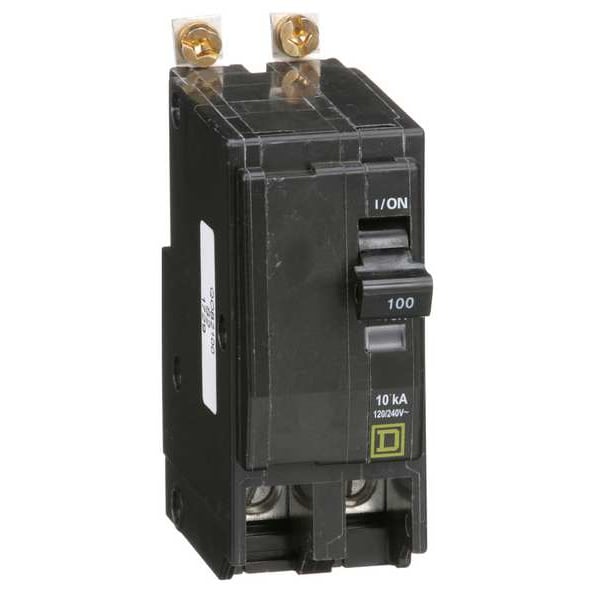

Miniature Circuit Breaker, QO Series, 100A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QOB2100
Zoro # G1885703
CAD Available
product price: $213.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
QO
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QOB2100
Zoro #
G1885703
UPC #
785901019688
Country of Origin
Mexico
Dimensions
Frame Size
100A/QO
Width
1-1/2 in
Depth
2.91 in
Height
3-1/2 in
Min. Wire Size
4 AWG
Max. Wire Size
2 AWG
Wire Size
AWG 4 to AWG 2/0 copper or aluminium
Length
3.5 in
Description
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.5 in, Width 1.5 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F
