  5. Miniature Circuit Breaker, QO Series, 100A, 2 Pole, 120/240V AC, 22kA at 120/240V AC

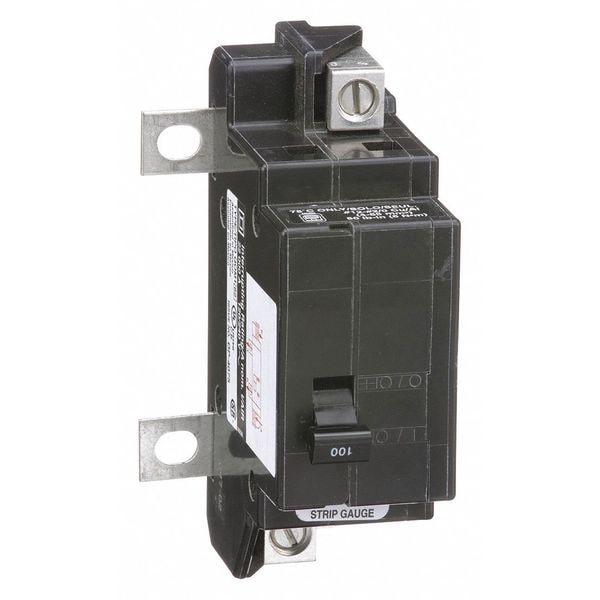

Square D Miniature Circuit Breaker, QO Series, 100A, 2 Pole, 120/240V AC, 22kA at 120/240V AC QOM100VH - main

Miniature Circuit Breaker, QO Series, 100A, 2 Pole, 120/240V AC, 22kA at 120/240V AC

  • Mfr # QOM100VH

  • Zoro # G3019046

CAD Available
product price:  $74.99
/ea

Key Features

CAD Drawing
Series
QO
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Main Breaker
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QOM100VH
Zoro #
G3019046
UPC #
785901004035
Country of Origin
Mexico

Dimensions

Frame Size
QOM1
Width
5 in
Depth
3.46 in
Height
5.08 in
Max. Wire Size
2 AWG
Min. Wire Size
12 AWG
Length
5.09 in

Details

Item
Miniature Circuit Breaker
Series
QO
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Main Breaker
Phase
1
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
22kA at 120/240V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Square D 125 Amp Single Phase Convertible Load Centers (QOM1 Frame Size)
Standards
UL Listed
Interrupt Rating
22 kA at 120/240V AC
Features
Mercury Free
Max. Operating Temp.
104 Degrees F
Compatible Panelboard/Load Center Series
QO
Min. Operating Temp.
77 Degrees F
Voltage
120/240 VAC
CAD Available
Yes
Instantaneous Trip
Trip Free
Trip Type
Thermal Magnetic, Trip Free

Description

Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Main Breaker, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOM, Max. AIR Rating 22kA at 120/240V AC, For Use With Square D 125 Amp Single Phase Convertible Load Centers (QOM1 Frame Size), Terminal Connection Lug, Frame Size 100A/QO, Length 5.09 in, Width 5 in
