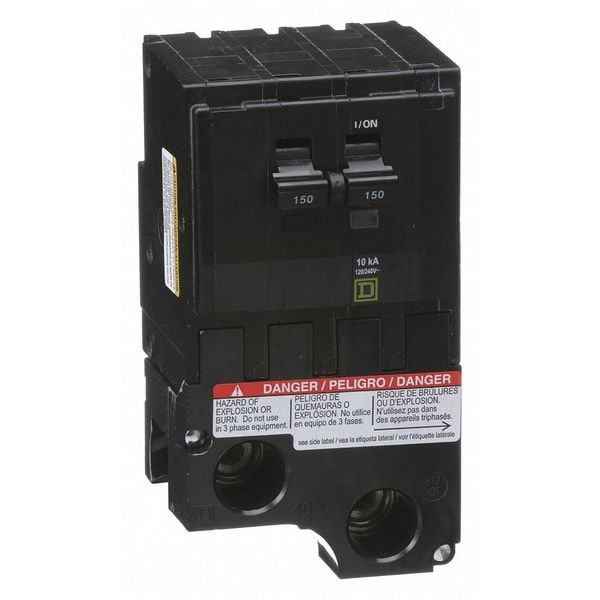

Miniature Circuit Breaker, QO Series, 150A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO2150
Zoro # G1161587
CAD Available
product price:Â
$
335.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
QO
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- QO2150
- Zoro #
- G1161587
- UPC #
- 785901300021
- Country of Origin
- Korea, Republic of
- CAD Available
- Yes
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 150A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Paddle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- 48V DC
- Standards
- HACR, UL Listed
- For Use With
- QO Load Centers and NQ Panelboards
- Application
- HACR rated Applications
- Interrupt Rating
- 10 kA at 120/240V AC
- Features
- Mercury Free
- Compatible Panelboard/Load Center Series
- QO
- Min. Operating Temp.
- 77 Degrees F
- Max. Operating Temp.
- 104 Degrees F
- Voltage
- 120/240 VAC
Description
Miniature Circuit Breaker, Amps 150 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.5 in, Width 1.5 in, Depth 2.9 in, Min. Operating Temp. 77 Degrees F
