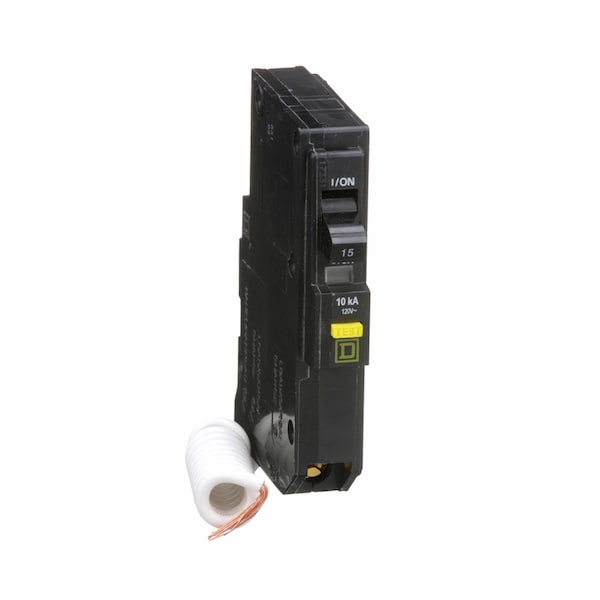

Miniature Circuit Breaker, QO Series, 15A, 1 Pole, 120V AC, 10kA at 120V AC, A Curve
Mfr # QO115GFICP
Zoro # G8636517
Key Features
Specifications
Product Information
- MFR #
- QO115GFICP
- Zoro #
- G8636517
- UPC #
- 47569522314
- Country of Origin
- United States
Dimensions
- Frame Size
- QO
- Width
- 3/4 in
- Depth
- 2.91 in
- Height
- 4.13 in
- Max. Wire Size
- 8 AWG (Cu), 8 AWG (Al)
- Min. Wire Size
- 14 AWG (Cu), 12 AWG (Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 15 A
- Number of Poles
- 1
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Ground Fault Circuit Interrupter
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- Curve Type
- A
- Standards
- UL Listed, CSA
- Features
- Mercury Free
- Interrupt Rating
- 10 kA at 120V AC
Description
The Square D by Schneider Electric QO Qwik-Gard 15 amp one-pole GFCI circuit breaker is intended for protection of entire branch circuits where damp-location shock hazards may exist, providing overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between in. off in. and on in. and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
- • Suitable only for feeding 240 Vac and 208 Vac 2 wire loads
- • 10A to 30A circuit breakers are suitable for use with 60degree Celsius or 75 degree Celsius conductors
- • 35A-125A circuit breakers are suitable for use with 75 degree Celsius conductors
- • Does not contain load neutral connection
- • UL listed
- • CSA approved
