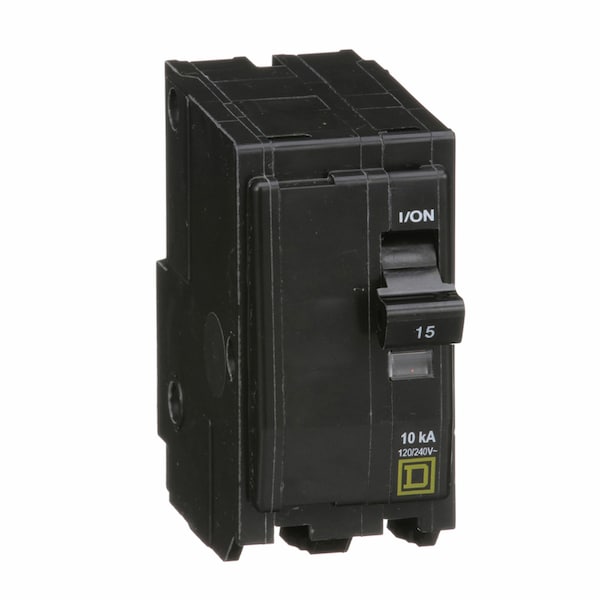

Miniature Circuit Breaker, QO Series, 15A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
- Mfr # QO215CP
- Zoro # G8664167
product price:
$
45.15
/ea
Key Features
Series
QO
Amps
15 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QO215CP
- Zoro #
- G8664167
- UPC #
- 47569008948
- Country of Origin
- United States
Dimensions
- Frame Size
- QO
- Width
- 1-1/2 in
- Depth
- 2.91 in
- Height
- 2.99 in
- Max. Wire Size
- 8 AWG (Cu/Al)
- Min. Wire Size
- 14 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 15 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- Application
- HACR rated Applications
- Standards
- UL Listed, CSA
- Features
- Mercury Free
- Interrupt Rating
- 10 kA at 120/240V AC
Description
The QO 15 amp Double-Pole Plug-On Circuit Breaker is compatible with QO load centers, QO enclosures, CSED devices and NQOD panel boards. The breaker is designed with a thermal-magnetic tripping system to protect from both electrical surges and overloads. Finding which breaker has tripped is easy thanks to the Visi-Trip indicator.
- • QO 15 amp two-pole circuit breaker
- • QO 15 amp two-pole circuit breaker contains a thermal-magnetic tripping mechanism and has a two-pole common trip and the breaker features a Visi-Trip indicator to easily identify the tripped circuit in the load center
- • Breaker features a Visi-Trip indicator to easily identify a tripped circuit in the load center this circuit breaker has a maximum load of 240-volt with a 10,000 Air and uses a thermal-magnetic tripping mechanism
- • Use for overload and short-circuit protection of your electrical system
- • Compatible with QO load centers and CSED devices
Documents & Resources
