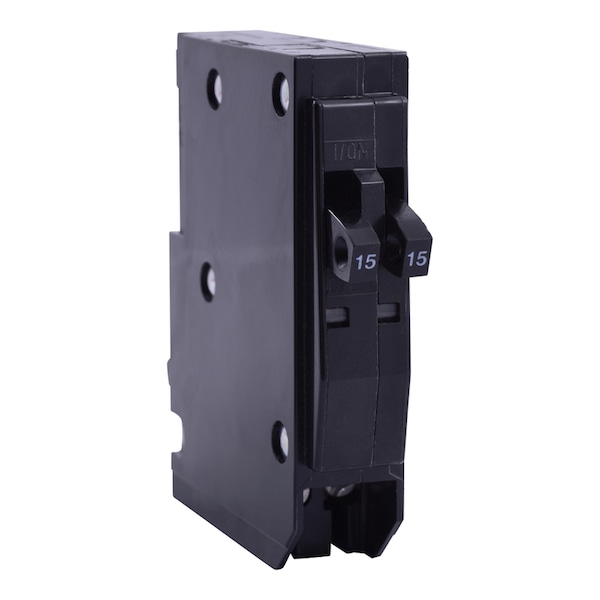

Miniature Circuit Breaker, QO Series, 15A, 2x1 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QOT1515CP
Zoro # G1919054
Key Features
Specifications
Product Information
- MFR #
- QOT1515CP
- Zoro #
- G1919054
- UPC #
- 47569062698
- Country of Origin
- Mexico
Dimensions
- Frame Size
- QO
- Width
- 3/4 in
- Depth
- 2.91 in
- Height
- 3.23 in
- Max. Wire Size
- 8 AWG (Cu), 8 AWG (Al)
- Min. Wire Size
- 14 AWG (Cu), 12 AWG (Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 15/15 A
- Number of Poles
- 2x1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Tandem
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Application
- HACR rated Applications
- Interrupt Rating
- 10 kA at 120/240V AC
- Standards
- UL Listed, CSA
Description
The Square D by Schneider Electric QO 15 amp single-pole tandem circuit breaker is intended for overload and short-circuit protection of your electrical system. This breaker offers 2 circuits in the space of just 1 and is compatible with QO load centers, CSED devices and NQOD panel boards. The ANSI-certified and UL-listed unit is rated for 120 or 240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between in off and in on and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
- • QOT tandem breakers have a mounting cam
- • Installation into a QO load center can only be made in those positions having a mounting pan rail slot
- • 10A to 30A circuit breakers are suitable for use with 60 degree Celsius or 75 degree Celsius conductors
- • 35A-125A circuit breakers are suitable for use with 75 degree Celsius conductors
- •
