  5. Miniature Circuit Breaker, QO Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC

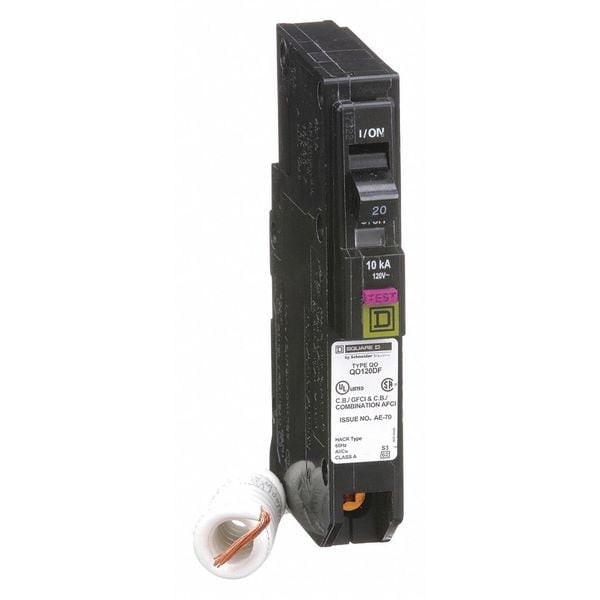

Square D Miniature Circuit Breaker, QO Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC QO120DF - main

CAD Drawings

Download CAD Files

Shop SQUARE D

Miniature Circuit Breaker, QO Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC

  • Mfr # QO120DF

  • Zoro # G4564266

CAD Available
product price:  $117.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Series
QO
Amps
20A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Combination ARC Fault and Ground Fault
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QO120DF
Zoro #
G4564266
UPC #
785901401629
Country of Origin
Mexico

Dimensions

Width
3/4 in
Depth
2.91 in
Height
4.76 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
8 AWG (Cu/Al)
Frame Size
QO

Details

Item
Miniature Circuit Breaker
Series
QO
Amps
20A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Combination ARC Fault and Ground Fault
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120V AC
Terminal Connection
Pressure Plate
DC Voltage Rating
Not Rated
Features
Mercury Free
Application
HACR rated Applications
Standards
UL Listed, CSA
Interrupt Rating
10 kA at 120V AC
For Use With
NQ Panelboards, QO Load Centers
CAD Available
Yes
Instantaneous Trip
Trip Free
Trip Type
Thermal Magnetic, Trip Free
Circuit Breaker Actuator
Toggle

Description

Circuit Breaker,20A,1-Pole,Dual Function
