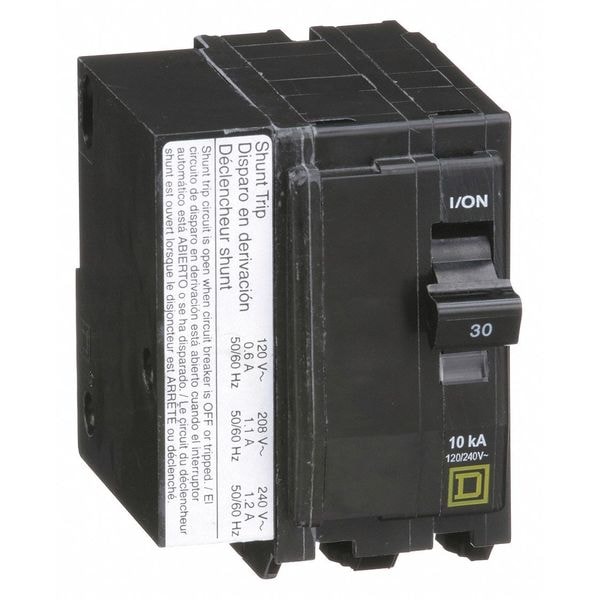

Miniature Circuit Breaker, QO Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO2301021
Zoro # G6970467
Key Features
Specifications
Details
- MFR #
- QO2301021
- Zoro #
- G6970467
- UPC #
- 785901493952
- Country of Origin
- Korea, Republic of
- CAD Available
- Yes
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 30A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Paddle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Shunt Trip
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- 48V DC
- For Use With
- QO Load Centers and NQ Panelboards
- Standards
- UL Listed
- Interrupt Rating
- 10 kA at 120/240V AC
- Features
- Mercury Free
- Application
- HACR rated Applications
- Compatible Panelboard/Load Center Series
- QO
- Voltage
- 120/240 VAC
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
