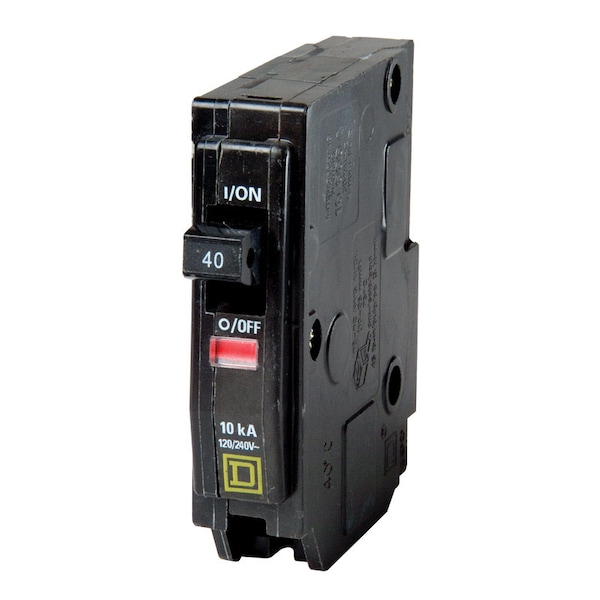

Miniature Circuit Breaker, QO Series, 40A, 1 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO140CP
Zoro # G1769029
Key Features
Specifications
Product Information
- MFR #
- QO140CP
- Zoro #
- G1769029
- UPC #
- 47569838019
- Country of Origin
- Mexico
Dimensions
- Frame Size
- QO
- Width
- 19 mm
- Depth
- 74 mm
- Height
- 79 mm
- Min. Wire Size
- 8 AWG (Cu/Al)
- Max. Wire Size
- 2 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 40 A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Application
- HACR rated Applications
- Interrupt Rating
- 10 kA at 120/240V AC
- Standards
- UL Listed, CSA
- Features
- Mercury Free
Description
The Square D by Schneider Electric QO 40 amp One-Pole Circuit Breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive Visi-Trip indicator. When a QO Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer.
- • QO 40 amp one-pole circuit breaker
- • Plug-on design and easy to install
- • Compatible with QO load centers, CSED's and NQOD panel boards
- • 120/240 volt AC
- • 10000 AIR
- •
