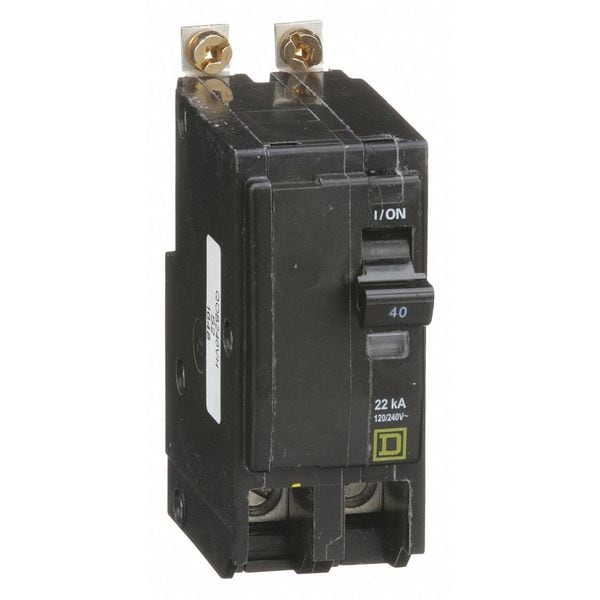

Miniature Circuit Breaker, QO Series, 40A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
Mfr # QOB240VH
Zoro # G2310682
product price:Â
$
164.99
/ea
Free Shipping & Returns
Key Features
Series
QO
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- QOB240VH
- Zoro #
- G2310682
- UPC #
- 785901054764
- Country of Origin
- Korea, Republic of
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 40A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Paddle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 22kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- For Use With
- Square D NQOD Panelboards
- Application
- HACR rated Applications
- Interrupt Rating
- 22 kA at 120/240V AC
- Features
- Mercury Free
- Compatible Panelboard/Load Center Series
- QO
- Min. Operating Temp.
- 77 Degrees F
- Max. Operating Temp.
- 104 Degrees F
- Voltage
- 120/240 VAC
Description
Miniature Circuit Breaker, Amps 40 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 22kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.1 in, Width 1.5 in, Depth 2.9 in
