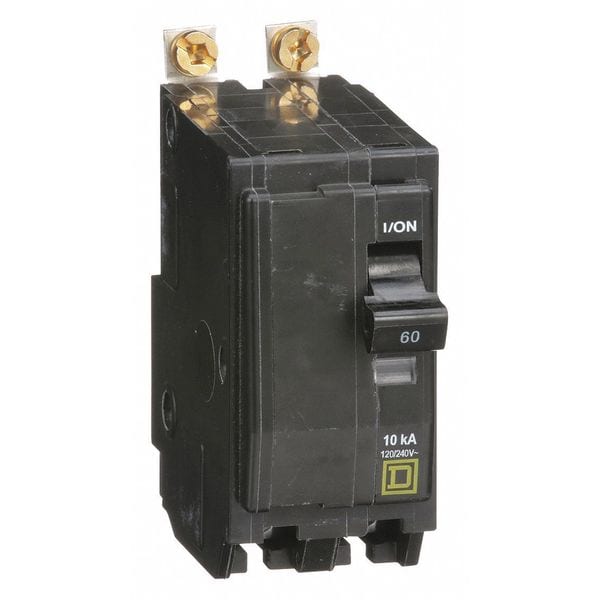

Miniature Circuit Breaker, QO Series, 60A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QOB260
Zoro # G1751425
CAD Available
product price:Â
$
91.65
/ea
Key Features
CAD Drawing
Series
QO
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QOB260
- Zoro #
- G1751425
- UPC #
- 785901417026
- Country of Origin
- Korea, Republic of
Dimensions
- Frame Size
- 100A/QO
- Width
- 1-1/2 in
- Depth
- 2.91 in
- Height
- 3.11 in
- Min. Wire Size
- 8 AWG
- Max. Wire Size
- 2 AWG
- Wire Size
- AWG 8 to AWG 2 copper or aluminium
- Length
- 3.1 in
Description
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.1 in, Width 1.5 in, Depth 2.9 in, Min. Operating Temp. 77 Degrees F
