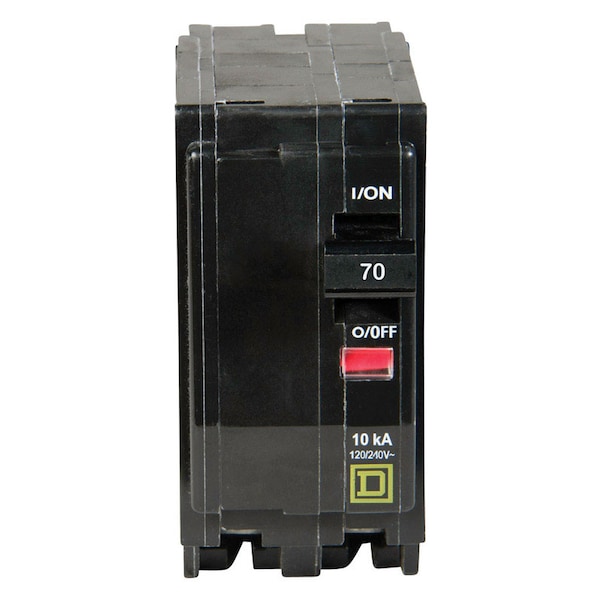

Miniature Circuit Breaker, QO Series, 70A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO270CP
Zoro # G1768563
Key Features
Specifications
Product Information
- MFR #
- QO270CP
- Zoro #
- G1768563
- UPC #
- 47569008955
- Country of Origin
- United States
Dimensions
- Frame Size
- QO
- Width
- 1-1/2 in
- Depth
- 2.91 in
- Height
- 3.11 in
- Max. Wire Size
- 2 AWG (Cu/Al)
- Min. Wire Size
- 8 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 70 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Application
- HACR rated Applications
- Standards
- UL Listed, CSA
- Interrupt Rating
- 10 kA at 120/240V AC
- Features
- Mercury Free
Description
The Square D by Schneider Electric QO 70 amp two-pole circuit breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
- • QO 70 amp two-pole circuit breaker
- • Plug-on design, easy to install
- • Compatible with QO load centers, CSED's and NQOD panel boards
- • 120 or 240 volt AC
- •
