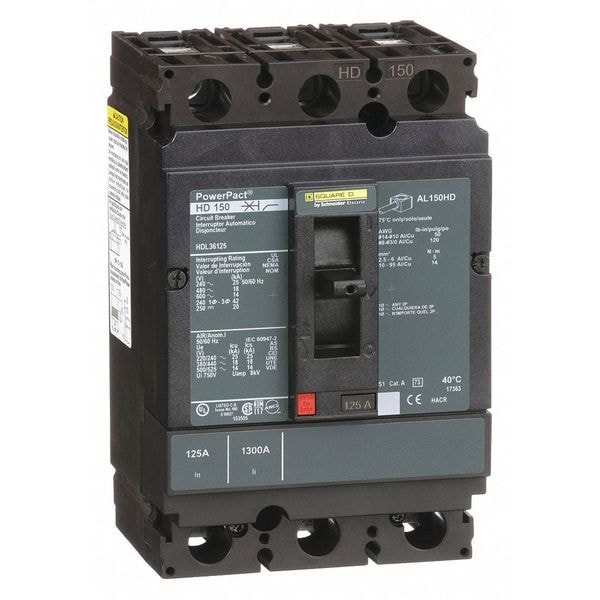

Molded Case Circuit Breaker, POWERPACT H Series, 125A, 3 Pole, 600V AC, 25kA at 240V AC

  • Mfr # HDL36125
  • Zoro # G1520023
CAD Available
product price:
$
1,774.50
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Series
POWERPACT H
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HDL36125
Zoro #
G1520023
UPC #
785901955849
Country of Origin
Korea, Republic of
CAD Available
Yes
Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
125A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
25kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
Phase Connection
ABC
DC Voltage Rating
250V DC
Standards
CE, CSA, IEC, UL listed
Low Amp Trip Setting
900 A
High Amp Trip Setting
1,700 A
Application
HACR rated Applications; Distribution
Color
Black
Features
Mercury Free; PVC Free
Interrupt Rating
25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC
Max. Operating Temp.
104 Degrees F
Local Signalling
Switched off (OFF) 1 trip indicator green)
Continuous Current Rating
0.8
Rated Service Breaking Capacity
25 kA 220/240 V AC 50/60 Hz IEC 60947-2; 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 14 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
Terminal Identifier
AL150HD
Number Of Slots
2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
Pollution Degree
3 IEC 60947-1
Circuit Breaker Application
HACR rated
Tightening Torque
44.25 lbf.in (5 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 in² (10 to 95 mm²) (AWG 8 to AWG 3/0)
Magnetic Tripping Current
1700 A
Ambient Air Temperature For Operation
28 to 158°F (-2 to 70°C)
Rated Insulation Voltage
750 V IEC 60947-2
Suitability For Isolation
Yes IEC 60947-2
Device Application
Distribution
Breaking Capacity
25 kA 240 V AC 50/60 Hz UL 489; 18 kA 480 V AC 50/60 Hz; 14 kA 600 V AC 50/60 Hz; 20 kA 250 V DC
Operating Altitude
Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
Ambient Air Temperature For Storage
-58 to 185°F (-50 to 85°C)
Protected Poles Description
3t
IP Degree Of Protection
Front cover IP40 IEC 60529
Network Frequency
50/60 Hz
AWG Gauge
AWG 14 to AWG 3/0 aluminium/copper terminal
Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Rated Operational Voltage
690 V AC 50/60 Hz IEC 60947-3
Breaking Capacity Code
D
Quality Labels
CE
Product Certifications
UL; CSA; NOM
Communication Interface
Modbus; Ethernet

Description

Molded Case Circuit Breaker, 125 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series HD, High Amp Trip Setting 1,700 A, Low Amp Trip Setting 900 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 150A/HD, Circuit Breaker Mounting Style Free Standing, Height 6.4 in, Width 4.12 in, Depth 4.36 in
