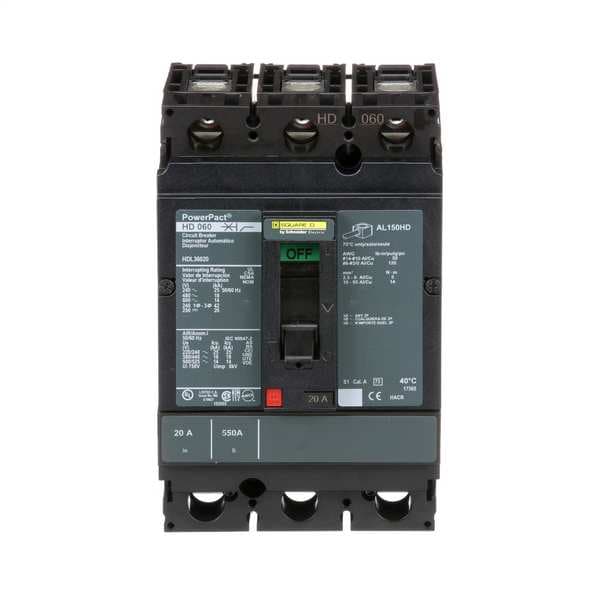

  5. Molded Case Circuit Breaker, POWERPACT H Series, 20A, 3 Pole, 600V AC, 25kA at 240V AC
Square D Molded Case Circuit Breaker, POWERPACT H Series, 20A, 3 Pole, 600V AC, 25kA at 240V AC HDL36020 - main

Molded Case Circuit Breaker, POWERPACT H Series, 20A, 3 Pole, 600V AC, 25kA at 240V AC

  • Mfr # HDL36020

  • Zoro # G1473105

product price:  $881.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT H
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HDL36020
Zoro #
G1473105
UPC #
785901706694
Country of Origin
Mexico

Dimensions

Frame Size
150A/HD
Width
4.12 in
Depth
4.36 in
Height
6.40 in
Max. Wire Size
3 AWG
Min. Wire Size
14 AWG
Power Wire Stripping Length
0.63 in (16 mm)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
20A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
25kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
250V DC
Standards
CE, CSA, IEC, UL listed
Low Amp Trip Setting
350 A
High Amp Trip Setting
750 A
Color
Black
Features
Mercury Free; PVC Free
Interrupt Rating
25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC
Application
HACR rated Applications; Distribution
Max. Operating Temp.
104 Degrees F
IP Degree Of Protection
Front cover IP40 IEC 60529
Communication Interface
Modbus; Ethernet
Operating Altitude
Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
Ambient Air Temperature For Operation
28 to 158°F (-2 to 70°C)
Tightening Torque
44.25 lbf.in (5 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 in² (10 to 95 mm²) (AWG 8 to AWG 3/0)
Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Quality Labels
CE
Product Certifications
UL; CSA; NOM
Device Application
Distribution
Pollution Degree
3 IEC 60947-1
Continuous Current Rating
0.8
Breaking Capacity
25 kA 240 V AC 50/60 Hz UL 489; 18 kA 480 V AC 50/60 Hz; 14 kA 600 V AC 50/60 Hz; 20 kA 250 V DC
Protected Poles Description
3t
Rated Insulation Voltage
750 V IEC 60947-2
Rated Service Breaking Capacity
25 kA 220/240 V AC 50/60 Hz IEC 60947-2; 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 14 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
Circuit Breaker Application
HACR rated
Suitability For Isolation
Yes IEC 60947-2
Breaking Capacity Code
D
Local Signalling
Switched off (OFF) 1 trip indicator green)
Rated Operational Voltage
690 V AC 50/60 Hz IEC 60947-3
Ambient Air Temperature For Storage
-58 to 185°F (-50 to 85°C)
Network Frequency
50/60 Hz
AWG Gauge
AWG 14 to AWG 3/0 aluminium/copper terminal
Terminal Identifier
AL150HD
Number Of Slots
2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)

Description

Molded Case Circuit Breaker, 20 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series HD, High Amp Trip Setting 750 A, Low Amp Trip Setting 350 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 150A/HD, Circuit Breaker Mounting Style Free Standing, Height 6.4 in, Width 4.12 in, Depth 4.36 in
