  9. Molded Case Circuit Breaker, POWERPACT H Series, 70A, 3 Pole, 600V AC, 100kA at 240VAC

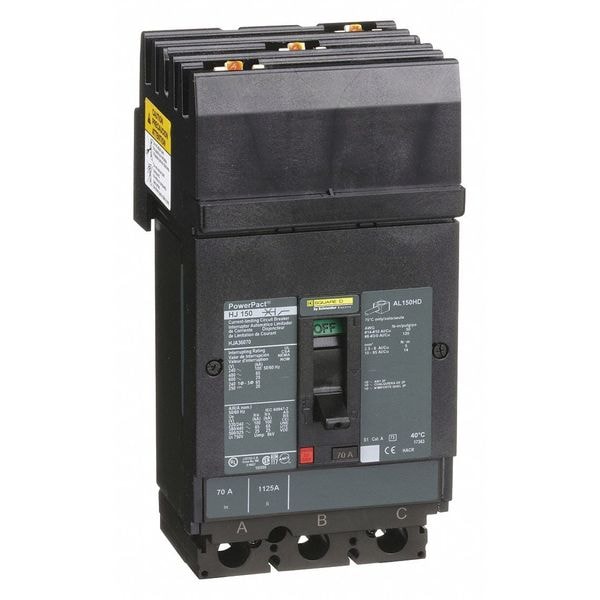

Square D Molded Case Circuit Breaker, POWERPACT H Series, 70A, 3 Pole, 600V AC, 100kA at 240VAC HJA36070 - main

Molded Case Circuit Breaker, POWERPACT H Series, 70A, 3 Pole, 600V AC, 100kA at 240VAC

  • Mfr # HJA36070

  • Zoro # G0567911

product price: $1,905.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT H
Amps
70A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HJA36070
Zoro #
G0567911
UPC #
785901700661
Country of Origin
Mexico

Dimensions

Frame Size
150A/HJ
Width
4.12 in
Depth
4.36 in
Height
6.40 in
Max. Wire Size
3/0 AWG (Cu/Al)
Min. Wire Size
14 AWG (Cu/Al)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
70A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
I-Line
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
100kA at 240VAC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
250V DC
Color
Black
Application
HACR rated Applications; Distribution
Interrupt Rating
100 kA at 220/240V AC, 65 kA at 380/440/415/480V AC, 25 kA at 500/525/600V AC, 20 kA at 250/500V DC
High Amp Trip Setting
1450 A
Features
Mercury Free; PVC Free
Standards
UL, CSA, NEMA, NOM, CE
Phase
3

Description

Molded Case Circuit Breaker 600V 70A
