- MFR #
- JJL36200
- Zoro #
- G0567966
- UPC #
- 785901461937
- Country of Origin
- Korea, Republic of
- Item

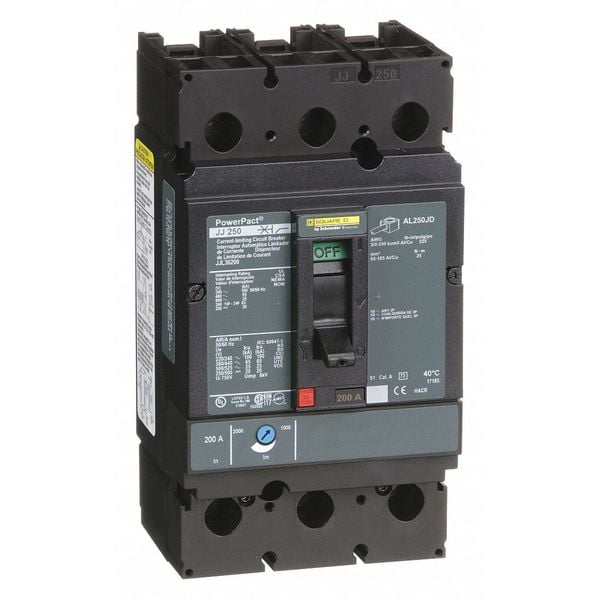

- Molded Case Circuit Breaker
- Series
- POWERPACT J
- Amps
- 200 A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Standard
- Phase
- 3
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 100kA at 240VAC
- Trip Type
- Thermal Magnetic
- Instantaneous Trip
- Adjustable
- Terminal Connection
- Lugs
- Phase Connection
- ABC
- DC Voltage Rating
- 250V DC
- Application
- HACR rated Applications; Distribution
- High Amp Trip Setting
- 2000 A
- Standards
- UL, CSA, NEMA, NOM, CE
- Interrupt Rating
- 65 kA at 220/240/480V AC, 35 kA at 380/440/415V AC, 18 kA at 500/525V AC, 20 kA at 250/500V DC, 100 kA at 240V AC, 25 kA at 600V AC
- Features
- Mercury Free; PVC Free
- Ambient Air Temperature For Storage
- -58 to 185°F (-50 to 85°C)
- Long Time Pick-Up Adjustment Range
- 0.25 to 1 x In
- Rated Insulation Voltage
- 750 V IEC 60947-2
- Protection Type
- Overload protection; Short-circuit protection
- Breaking Capacity Code
- J
- Quality Labels
- CE
- IP Degree Of Protection
- Front cover IP40
- Breaking Capacity
- 100 kA 240 V AC 50/60 Hz UL 489; 65 kA 480 V AC 50/60 Hz UL 489; 25 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489
- Network Frequency
- 50/60 Hz
- Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- AWG Gauge
- AWG 3/0 to 350 kcmil aluminium/copper terminals
- Suitability For Isolation
- Yes IEC 60947-2
- Communication Interface
- Modbus; Ethernet
- Pollution Degree
- 3 IEC 60947-1
- Continuous Current Rating
- 0.8
- Magnetic Hold Current
- 1000 A
- Product Certifications
- UL; CSA; NOM
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Device Application
- Distribution
- Terminal Identifier
- AL250JD
- Operating Altitude
- Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
- Number Of Slots
- 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
- Circuit Breaker Application
- HACR rated
- Ambient Air Temperature For Operation
- 28 to 158°F (-2 to 70°C)
- Rated Service Breaking Capacity
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2; 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 18 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
- Tightening Torque
- 221.27 lbf.in (25 N.m) 0.15 to 0.29 in² (95 to 185 mm²) (AWG 3/0 to 350 kcmil)
- Local Signalling
- Switched off (OFF) 1 trip indicator green)
