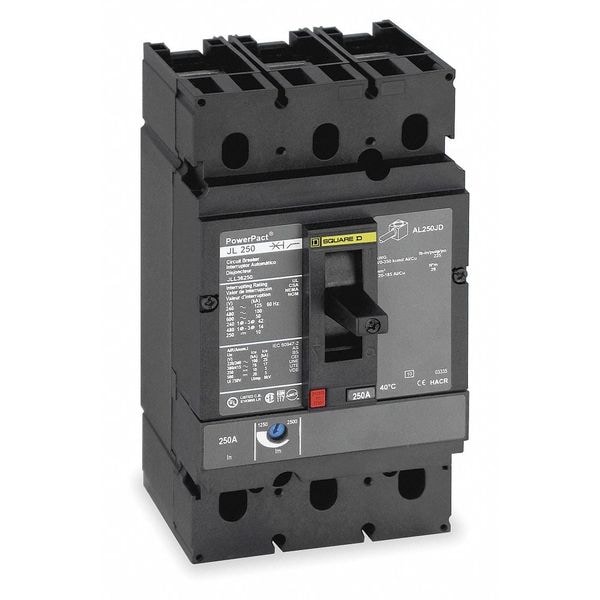

Molded Case Circuit Breaker, POWERPACT J Series, 250A, 3 Pole, 600V AC, 65kA at 240V AC

  • Mfr # JGL36000S25

  • Zoro # G1928455

product price:  $1,570.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT J
Amps
250A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Shunt Trip
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JGL36000S25
Zoro #
G1928455
UPC #
785901598862
Country of Origin
Korea, Republic of

Dimensions

Frame Size
250A/JG
Width
4.12 in
Depth
5 in
Height
7.52 in
Max. Wire Size
350 MCM
Min. Wire Size
3 AWG

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT J
Amps
250A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Shunt Trip
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Unit Mount
Max. AIR Rating
65kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
250/500V DC
For Use With
I Line Panelboards
Standards
CCC, CE, CSA, IEC, UL Listed
High Amp Trip Setting
3,125 A
Low Amp Trip Setting
3,125 A
Features
Mercury Free; PVC Free
Poles Description
3P
AWG Gauge
x AWG 3/0 to 350 kcmil ( aluminium/copper )
Product Certifications
CSA; UL Listed; CE; IEC; NMX; CCC
Rated Operational Voltage
600 V AC; 250 V DC
Terminal Identifier
AL250JD
Short-Circuit Withstand
65 kA 240 V UL 489; 35 kA 480 V UL 489; 18 kA 600 V UL 489
Magnetic Tripping Current
3125 A
Breaking Capacity Code
G
Tightening Torque
230.12 lbf.in (26 N.m) 0.15 to 0.29 in² (95 to 185 mm²) (AWG 3/0 to 350 kcmil)

Description

Molded Case Circuit Breaker, 250 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 240V AC, For Use With I Line Panelboards, Series JG, High Amp Trip Setting 3,125 A, Low Amp Trip Setting 3,125 A, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 250A/JG, Circuit Breaker Mounting Style Free Standing, Height 7.52 in
