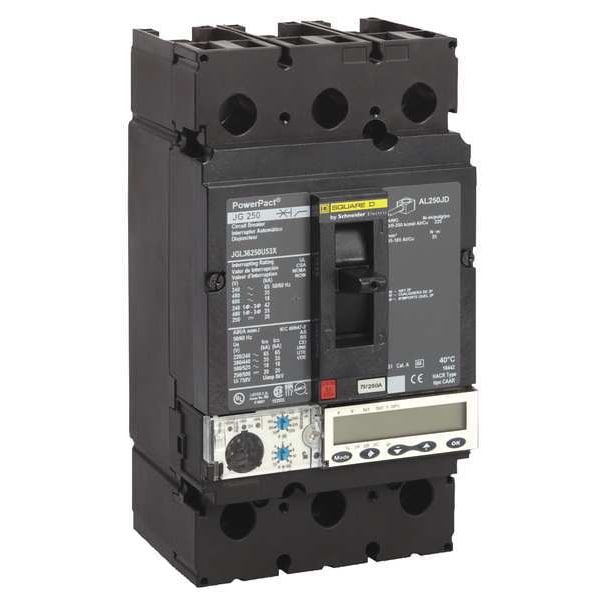

Molded Case Circuit Breaker, POWERPACT J Series, 250A, 3 Pole, 600V AC, 65kA at 240V AC
Mfr # JGL36250U43X
Zoro # G4134182
product price:Â
$
4,934.99
/ea
Free Shipping & Returns
Key Features
Series
POWERPACT J
Amps
250A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
LS Functionality / Micrologic
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- JGL36250U43X
- Zoro #
- G4134182
- UPC #
- 094715966492
- Country of Origin
- Indonesia
- Item
- Molded Case Circuit Breaker
- Series
- POWERPACT J
- Amps
- 250A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- LS Functionality / Micrologic
- Phase
- 3
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 65kA at 240V AC
- Trip Type
- Thermal Magnetic
- Instantaneous Trip
- Adjustable
- Terminal Connection
- Lugs
- Phase Connection
- ABC
- DC Voltage Rating
- 250/500V DC
- Low Amp Trip Setting
- 250 A
- High Amp Trip Setting
- 70 A
- Standards
- BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
- Features
- Mercury Free; PVC Free
- Interrupt Rating
- 65 kA at 220/240V AC, 35 kA at 380/440/415/480V AC, 18 kA at 500/525/600V AC, 20 kA at 250/500V DC
- Application
- HACR rated Applications; Distribution
Description
Molded Case Circuit Breaker, 250 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 240V AC, Series JG, High Amp Trip Setting 70 A, Low Amp Trip Setting 250 A, Circuit Breaker Type Micrologic Ammeter W LSI Functionality, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Box Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Adjustable, Phase Connection ABC, Frame Size 250A/J, Circuit Breaker Mounting Style Free Standing, Height 7.5 in, Width 4.1 in
