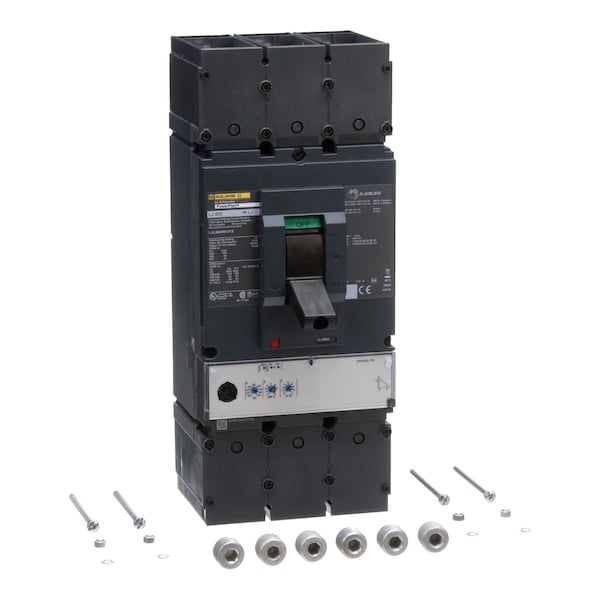

Molded Case Circuit Breaker, POWERPACT L Series, 600A, 3 Pole, 600V AC, 100kA at 240V AC
Mfr # LJL36600U31X
Zoro # G3983302
product price:Â
$
9,467.99
/ea
Free Shipping & Returns
Key Features
Series
POWERPACT L
Amps
600 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Micrologic
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LJL36600U31X
- Zoro #
- G3983302
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Frame Size
- 600A/LJ
- Width
- 5.51 in
- Depth
- 4.33 in
- Height
- 13.39 in
- Min. Wire Size
- (2) 2/0 AWG (Cu/Al)
- Max. Wire Size
- 500 kcmil (Cu/Al)
Details
- Item
- Molded Case Circuit Breaker
- Series
- POWERPACT L
- Amps
- 600 A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Micrologic
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 100kA at 240V AC
- Trip Type
- Electronic
- Terminal Connection
- Line/Load Lug
- Phase Connection
- ABC
- DC Voltage Rating
- 250V DC
- Features
- Mercury Free; PVC Free
- Application
- HACR rated Applications; Distribution
- Standards
- UL, CSA, NEMA, NOM, IEC
- Color
- Black
- Interrupt Rating
- 65 kA at 220/240/480V AC, 35 kA at 380/440/415V AC, 18 kA at 500/525V AC, 20 kA at 250/500V DC, 100 kA at 240V AC, 25 kA at 600V AC
Description
Circuit breaker,PowerPact L,Micrologic
