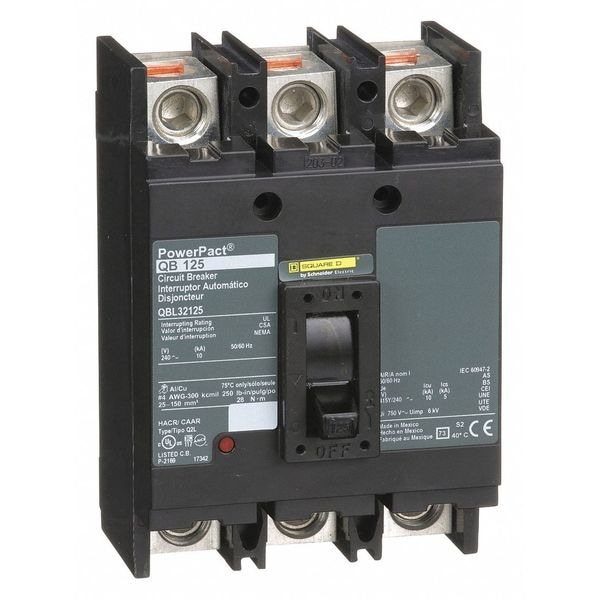

Molded Case Circuit Breaker, POWERPACT Q Series, 125A, 3 Pole, 240V AC, 10kA at 240V AC

  • Mfr # QBL32125

  • Zoro # G0477364

product price:
$
851.77
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT Q
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
QBL32125
Zoro #
G0477364
UPC #
785901417811
Country of Origin
Korea, Republic of
Item
Molded Case Circuit Breaker
Series
POWERPACT Q
Amps
125A
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
10kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
Not Rated
Standards
CSA, IEC, UL Listed
High Amp Trip Setting
2,400 A
Low Amp Trip Setting
1,200 A
Interrupt Rating
10 kA at 120/208/240V AC
Features
Mercury Free; PVC Free
Application
HACR rated Applications; Distribution
Tightening Torque
247.82 lbf.in (28 N.m) 0.04 to 0.23 in² (25 to 150 mm²) (AWG 4 to 300 kcmil)
Mechanical Durability
1000 cycles loaded; 5000 cycles no load
Rated Operational Voltage
240 V AC 50/60 Hz UL
Control Type
Operating handle
Product Certifications
UL; CSA; NOM
Device Application
Distribution
Circuit Breaker Application
HACR rated
Local Signalling
1 trip indicator green)
Ambient Air Temperature For Operation
104 to 158°F (40 to 70°C)
Network Frequency
50/60 Hz
Breaking Capacity
10 kA 120/208 V AC 50/60 Hz UL; 10 kA 240 V AC 50/60 Hz UL
Breaking Capacity Code
B
Magnetic Tripping Current
2400 A
Magnetic Hold Current
1200 A
Continuous Current Rating
0.8
Rated Impulse Withstand Voltage
8 kV UL

Description

Molded Case Circuit Breaker, 125 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, For Use With -, Series QB, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 250A/QB, Circuit Breaker Mounting Style Free Standing, Height 6.47 in, Width 4.5 in
