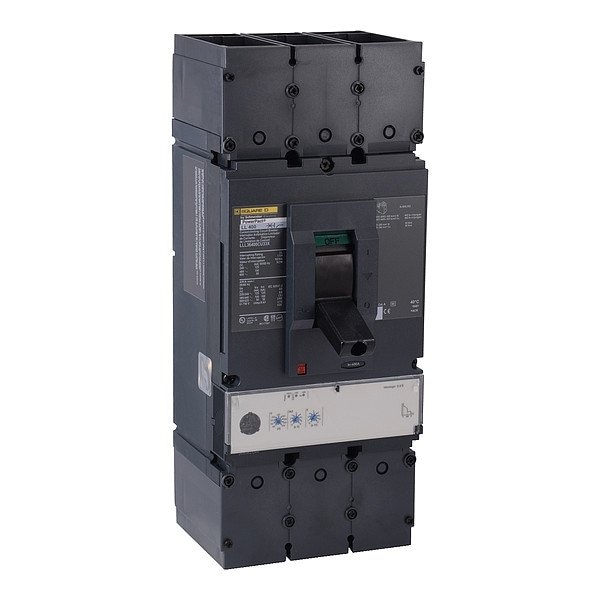

Molded Case Circuit Breakers
Mfr # LDL36400U33X
Zoro # G223552734
product price:Â
$
5,892.99
/ea
Free Shipping & Returns
Key Features
Terminal Connection
Lugs
Height
13.4 in
Min. Operating Temp.
-13
Max. Operating Temp.
157 Degrees F
Number of Poles
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LDL36400U33X
- Zoro #
- G223552734
- UPC #
- 785901954354
- Country of Origin
- Mexico
Dimensions
- Height
- 13.4 in
- Depth
- 4.3 in
- Min. Wire Size
- 2/0 AWG
- Max. Wire Size
- 500 kcmil
- Width
- 5.5 in
Details
- Terminal Connection
- Lugs
- Min. Operating Temp.
- -13
- Max. Operating Temp.
- 157 Degrees F
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Mounting Style
- Unit Mount
- Item
- Molded Case Circuit Breaker
- Standards
- CE marked, CSA, IEC, NOM, UL
- Amps
- 400 A
- For Use With
- PowerPacT L Frame
- Max. AIR Rating
- 14kA at 600V AC
Description
Molded Case Circuit Breaker, 400 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 14kA at 600V AC, For Use With PowerPacT L Frame, Number of Poles 3, Terminal Connection Lugs, Trip Type Electronic, Circuit Breaker Mounting Style Unit Mount, Height 13.4 in, Width 5.5 in, Depth 4.3 in, Min. Wire Size 2/0 AWG, Max. Wire Size 500 kcmil, Max. Operating Temp. 157 Degrees F, Min. Operating Temp. -13, Standards CE marked, CSA, IEC, NOM, UL
