  13. Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp

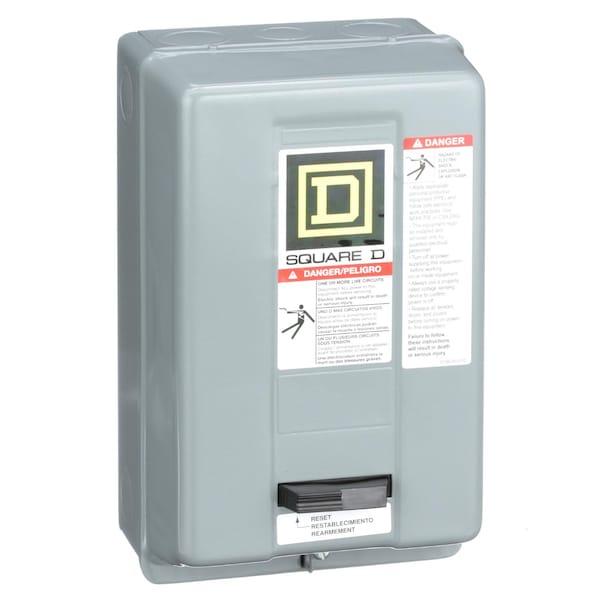

Square D Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp 8536SCG2V02S - main

Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp

  • Mfr # 8536SCG2V02S

  • Zoro # G0852306

product price: $714.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
2
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8536SCG2V02S
Zoro #
G0852306
UPC #
785901094500
Country of Origin
Mexico

Dimensions

NEMA Size
1P
Overall Width
152 mm
Overall Height
254 mm
Overall Depth
141 mm

Details

Item
Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
2
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed, NEMA
Features
Pvc Free
Enclosure Type
Painted Steel Sheet
Operating Voltage
600V AC
Auxiliary Contacts
Without
Horsepower Rating
3 HP 115 V AC; 5 HP 230 V AC
Control Circuit Type
Separate Control Circuit
Maximum Voltage Rating
600 V AC
Control Units
No control units
Rated Current
36 A
Phase
1 phase
Short Circuit Current Rating
Circuit-breaker: 5 kA at 600 V AC; Fuse: 5 kA at 600 V AC
Range of Product
S
NEMA Enclosure Rating
NEMA 1
Current AC
27 A
Overload Protection Type
Melting Alloy
Frequency
50/60 Hz
Control Circuit Voltage
110 V AC 50 Hz, 120 V AC 60 Hz

Description

Starter Motor Control Less Than1000Vac
