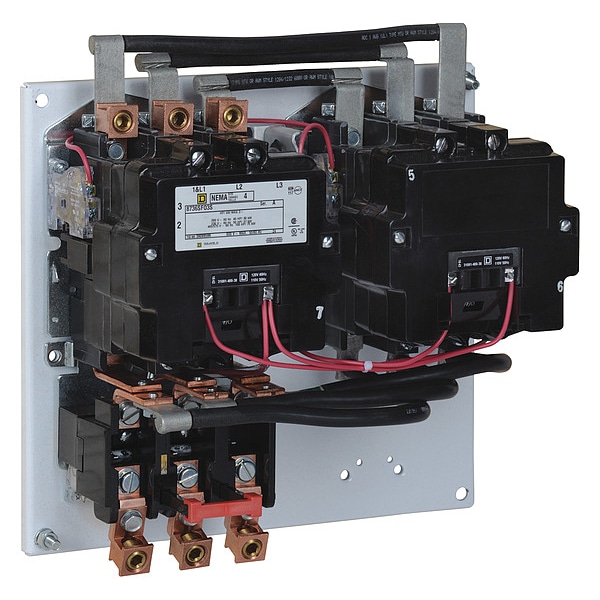

Square D Motor Starter, Reversing, No Auxiliary Contacts, 110V-120V AC, 3 P, Screw Clamp 8736SFO3V02S - main

Motor Starter, Reversing, No Auxiliary Contacts, 110V-120V AC, 3 P, Screw Clamp

  • Mfr # 8736SFO3V02S

  • Zoro # G0852559

product price: $8,294.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8736SFO3V02S
Zoro #
G0852559
UPC #
785901842026
Country of Origin
Mexico

Dimensions

NEMA Size
4
Overall Depth
7 in
Mounting Hole Distance - Width
13.25 in
Mounting Hole Distance - Height
12.25 in
Overall Height
14.59 in
Overall Width
14.25 in

Details

Item
Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed
Enclosure Type
Open
Thermal Unit Code
CC
Operating Voltage
600V AC
Phase
Three
Control Circuit Type
Separate Control Circuit
Horsepower Rating
40 HP 200 V AC; 50 HP 230 V AC; 100 HP 460 V AC; 100 HP 575 V AC
Auxiliary Contacts
Without
Control Units
No control units
Wiring Mode
3 wires
Short Circuit Current Rating
Circuit-breaker: 10 kA at 600 V AC; Fuse: 10 kA at 600 V AC
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 208V AC
40 hp
Horsepower @ Three Phase - 480V AC
100 hp
Horsepower @ Three Phase - 600V AC
100 hp
Horsepower @ Three Phase - 240V AC
50 hp
Series
Square D
Overload Protection Type
Thermal
Operator
None
Mounting Postion
Horizontal
Current AC
135 A
Frequency
50/60 Hz
Starter Style
NEMA
Includes Pilot Light
No
Includes Auxiliary Contacts
No
NEMA Enclosure Rating
No Enclosure

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting Not Applicable, Overload Protection Type Thermal, Minimum Overload Relay Current Setting Not Applicable, Trip Class Not Applicable, Series Square D, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form Not Applicable, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC
