  13. NEMA Control Relay, 4NO, 24VDC, 10A

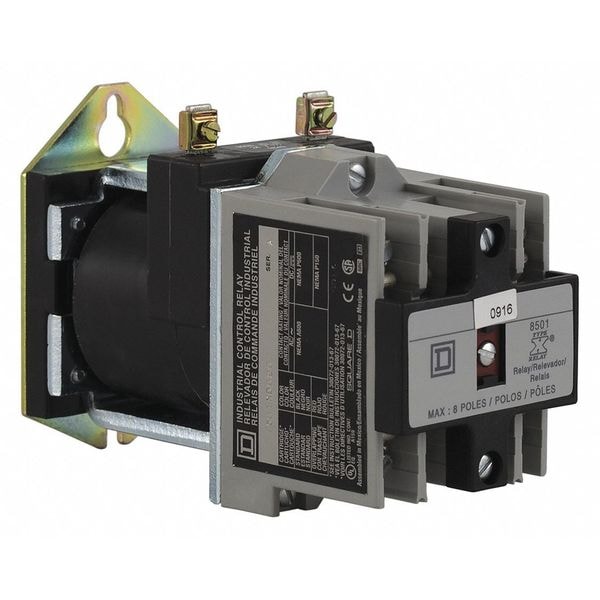

Square D NEMA Control Relay, 4NO, 24VDC, 10A 8501XDO40V53 - main

NEMA Control Relay, 4NO, 24VDC, 10A

  • Mfr # 8501XDO40V53

  • Zoro # G0881413

product price: $359.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
24V DC
Item - Relay
NEMA Style Control Relay
Body Width - Relay
2.23 in
Body Depth - Relay
5.17 in
Contact Material
Silver Cadmium Oxide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XDO40V53
Zoro #
G0881413
UPC #
785901548720
Country of Origin
Mexico

Dimensions

Body Width - Relay
2.23 in
Body Depth - Relay
5.17 in
Body Height - Relay
3.56 in
Overall Height - Relay
3.5 in
Depth
5.17 in
Width
2.23 in
Height
3.56 in
Overall Height
3.56 in
Lead Size
18 AWG
Body Depth
5.17 in
Body Width
2.23 in
Body Height
3.56 in

Details

Item
NEMA Control Relay
Coil Volts
24V DC
Item - Relay
NEMA Style Control Relay
Contact Material
Silver Cadmium Oxide
Response Time
21 msec (Drop-Out Time), 37 msec (Pick-Up Time)
AC Contact Rating - Relay
10A @ 120/240/480/600V
Contact Form
4NO
Number of Pins - Relay
10
Standards
CSA Certified, RoHS Compliant, UL Listed
Contact Amp Rating (Resistive)
10A
Power Consumption - Relay
18.0 W
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
DC Contact Rating - Relay
5A @ 125/250V
Mounting
Panel
Accessory Group
A
Mounting - Relay
Surface
Contact Form - Relay
(4) SPST-NO
Relay Type
control
Product Certifications
UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03
Operating Time
37 ms - pick-up || 21 ms - drop-out
Hold-In Power Consumption In W
18-18 W
Product Or Component Type
relay
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Line Rated Current
10 A AC || 5 A DC
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Ambient Air Temperature For Operation
-40-160 °F
Mounting Support
panel
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Electrical Connection
Screw Clamp
Awg Gauge
AWG 18 to AWG 12 copper
Contacts Type And Composition
4 NO 4 standard contact cartridges
[Uc] Control Circuit Voltage
24 V DC
Inrush Power In W
18 W
Control Circuit Voltage Limits
operational 0.8 to 1.1 Uc DC
Relay Style
NEMA
Contact Rating (AC)
10 A @ 600V
Maximum Operating Temperature
160 Degrees F
Input Voltage
24V DC
Compatible with Series
8501 Type X Latching Control Relays
Mounting Style
Surface
Current Rating
10 A
Power Consumption
18 W
Minimum Operating Temperature
-40 Degrees F
Frequency
60 Hz
Contact Rating (DC)
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Coil Voltage
24V DC
Number of Pins
10
Operating Temperature
-40 to 160°F (-40 to 71°C)
Certifications
UL listed file E78403 CCN NKCR; CSA LR60905 class 3211 03
Rated Short Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508

Description

NEMA Control Relay, Current Rating 10 A, Contact Form 4NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 18 W, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 60 Hz, Body Depth 5.17 in, Body Height 3.56 in, Body Width 2.23 in
