  13. NEMA Control Relay, 8NO, 24VDC, 10A

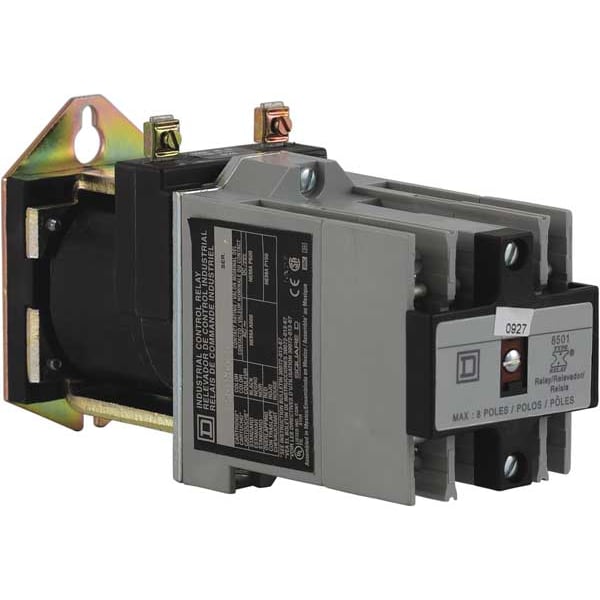

Square D NEMA Control Relay, 8NO, 24VDC, 10A 8501XDO80V53 - main

NEMA Control Relay, 8NO, 24VDC, 10A

  • Mfr # 8501XDO80V53

  • Zoro # G1982285

product price: $440.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
24V DC
Power Consumption - Relay
18.0 W
Number of Pins - Relay
14
Accessory Group
C
DC Contact Rating - Relay
5A @ 125/250V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XDO80V53
Zoro #
G1982285
UPC #
785901548768
Country of Origin
Mexico

Dimensions

Body Depth - Relay
6.37 in
Body Width - Relay
2.23 in
Body Height - Relay
3.5 in
Overall Height - Relay
3.5 in
Depth
6.37 in
Height
3.56 in
Width
2.23 in
Overall Height
3.56 in
Body Height
3.56 in
Body Depth
6.37 in
Lead Size
18 AWG
Body Width
2.23 in

Details

Item
NEMA Control Relay
Coil Volts
24V DC
Power Consumption - Relay
18.0 W
Number of Pins - Relay
14
Accessory Group
C
DC Contact Rating - Relay
5A @ 125/250V
Mounting
Panel
Contact Form - Relay
(8) SPST-NO
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
Standards
CSA Certified, RoHS Compliant, UL Listed
Mounting - Relay
Surface
Item - Relay
NEMA Style Control Relay
Contact Form
8NO
Contact Amp Rating (Resistive)
10A
Contact Material
Silver Cadmium Oxide
AC Contact Rating - Relay
10A @ 120/240/480/600V
Response Time
21 msec (Drop-Out Time), 37 msec (Pick-Up Time)
[Uc] Control Circuit Voltage
24 V DC
Mounting Support
panel
Line Rated Current
10 A AC || 5 A DC
Relay Type
control
Hold-In Power Consumption In W
18-18 W
Product Certifications
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
Inrush Power In W
18 W
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Electrical Connection
Screw Clamp
Ambient Air Temperature For Operation
-40-160 °F
Control Circuit Voltage Limits
operational 0.8 to 1.1 Uc DC
Contacts Type And Composition
8 NO 8 standard contact cartridges
Operating Time
37 ms - pick-up || 21 ms - drop-out
Product Or Component Type
relay
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Awg Gauge
AWG 18 to AWG 12 copper
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Weight
3.4 lbs.
Contact Rating (AC)
10 A @ 600V
Compatible with Series
8501 Type X Latching Control Relays
Mounting Style
Surface
Current Rating
10 A
Input Voltage
24V DC
Relay Style
NEMA
Contact Rating (DC)
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Number of Pins
14
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
160 Degrees F
Power Consumption
18 W
Coil Voltage
24V DC

Description

NEMA Control Relay, Current Rating 10 A, Contact Form 8NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 18 W, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Body Depth 6.37 in, Body Height 3.56 in, Body Width 2.23 in
