  13. NEMA Control Relay2NO120VAC10A

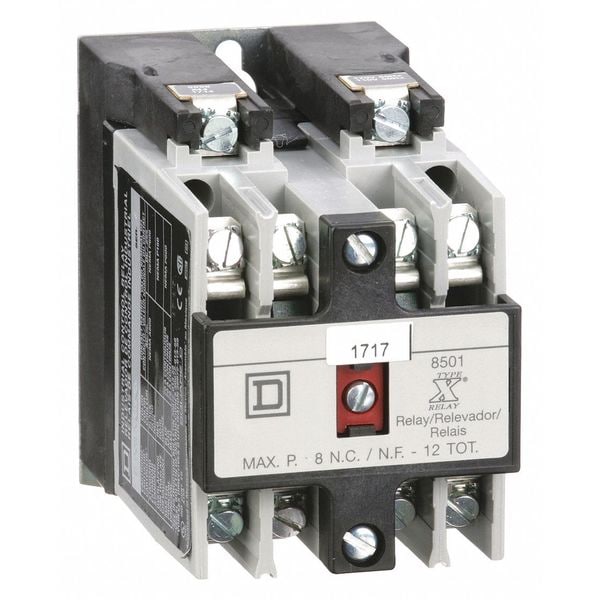

Square D NEMA Control Relay2NO120VAC10A 8501XO20V02 - main

NEMA Control Relay2NO120VAC10A

  • Mfr # 8501XO20V02

  • Zoro # G0508033

product price: $172.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
120V AC
Hz
50/60
Body Height - Relay
3.5 in
Contact Amp Rating (Resistive)
10A
Standards
CSA Certified, RoHS Compliant, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XO20V02
Zoro #
G0508033
UPC #
785901536963
Country of Origin
Mexico

Dimensions

Body Height - Relay
3.5 in
Body Width - Relay
2.23 in
Body Depth - Relay
3.95 in
Overall Height - Relay
3.5 in
Width
2.23 in
Height
3.5 in
Depth
3.95 in
Lead Size
18 AWG
Body Width
2.23 in
Body Height
3.5 in
Overall Height
3.5 in
Body Depth
3.95 in

Details

Item
NEMA Control Relay
Coil Volts
120V AC
Hz
50/60
Contact Amp Rating (Resistive)
10A
Standards
CSA Certified, RoHS Compliant, UL Listed
Number of Pins - Relay
6
Mounting - Relay
Surface
Accessory Group
A
Hz - Electrical
50 Hz, 60 Hz
Item - Relay
NEMA Style Control Relay
Contact Form - Relay
(2) SPST-NO
DC Contact Rating - Relay
5A @ 125/250V
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Contact Material
Silver Cadmium Oxide
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
Contact Form
2NO
Mounting
Panel
Power Consumption - Relay
23.0 VA
AC Contact Rating - Relay
10A @ 120/240/480/600V
Line Rated Current
10 A AC || 5 A DC
Ambient Air Temperature For Operation
-40-160 °F
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Product Certifications
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
Control Circuit Voltage Limits
operational 0.85 to 1.1 Uc AC 50/60 Hz
Mounting Support
panel
Product Or Component Type
relay
Relay Type
control
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Contacts Type And Composition
2 NO 2 standard contact cartridges
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Inrush Power In Va
148-148 VA 60 Hz || 143-143 VA 50 Hz
Operating Time
15 ms - pick-up || 16 ms - drop-out
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Awg Gauge
AWG 18 to AWG 12 copper
Electrical Connection
Screw Clamp
Hold-In Power Consumption In Va
23-23 VA 60 Hz || 25-25 VA 50 Hz
Compatible with Series
8501 Type X Latching Control Relays
Frequency
50/60 Hz
Power Consumption
23 VA
Contact Rating (DC)
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Contact Rating (AC)
10 A @ 600V
Mounting Style
Surface
Current Rating
10 A
Input Voltage
110/120V AC
Relay Style
NEMA
Coil Voltage
110/120V AC
Minimum Operating Temperature
-40 Degrees F
Number of Pins
6
Maximum Operating Temperature
160 Degrees F
Operating Temperature
-40 to 160°F (-40 to 71°C)
Certifications
CSA LR60905 class 3211 03; UL listed file E78403 CCN NKCR
Rated Short Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508

Description

NEMA Control Relay, Current Rating 10 A, Contact Form 2NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 110/120V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 3.95 in, Body Height 3.5 in, Body Width 2.23 in
