  13. NEMA Control Relay6NO120VAC10A

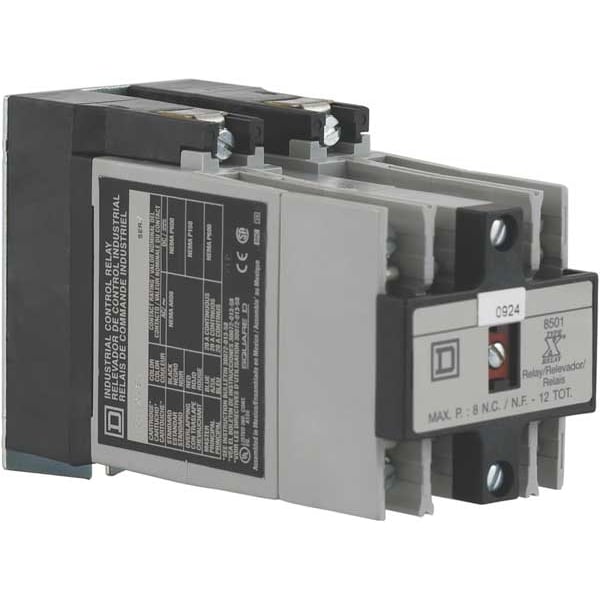

Square D NEMA Control Relay6NO120VAC10A 8501XO60V02 - main

NEMA Control Relay6NO120VAC10A

  • Mfr # 8501XO60V02

  • Zoro # G2953194

product price: $250.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
120V AC
Hz
50/60
Contact Amp Rating (Resistive)
10A
Power Consumption - Relay
23.0 VA
DC Contact Rating - Relay
5A @ 125/250V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XO60V02
Zoro #
G2953194
UPC #
785901536789
Country of Origin
Mexico

Dimensions

Body Depth - Relay
5.16 in
Body Height - Relay
3.5 in
Body Width - Relay
2.23 in
Overall Height - Relay
3.5 in
Width
2.23 in
Height
3.5 in
Depth
5.16 in
Body Depth
5.16 in
Body Height
3.5 in
Body Width
2.23 in
Overall Height
3.5 in
Lead Size
18 AWG

Details

Item
NEMA Control Relay
Coil Volts
120V AC
Hz
50/60
Contact Amp Rating (Resistive)
10A
Power Consumption - Relay
23.0 VA
DC Contact Rating - Relay
5A @ 125/250V
Standards
CSA Certified, RoHS Compliant, UL Listed
AC Contact Rating - Relay
10A @ 120/240/480/600V
Accessory Group
B
Hz - Electrical
50 Hz, 60 Hz
Item - Relay
NEMA Style Control Relay
Mounting
Panel
Number of Pins - Relay
14
Contact Form
6NO
Contact Material
Silver Cadmium Oxide
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
Mounting - Relay
Surface
Contact Form - Relay
(6) SPST-NO
Awg Gauge
AWG 18 to AWG 12 copper
Product Or Component Type
relay
Relay Type
control
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Operating Time
15 ms - pick-up || 16 ms - drop-out
Contacts Type And Composition
6 NO 6 standard contact cartridges
Mounting Support
panel
Control Circuit Voltage Limits
operational 0.85 to 1.1 Uc AC 50/60 Hz
Inrush Power In Va
148-148 VA 60 Hz || 143-143 VA 50 Hz
Ambient Air Temperature For Operation
-40-160 °F
Hold-In Power Consumption In Va
23-23 VA 60 Hz || 25-25 VA 50 Hz
Electrical Connection
Screw Clamp
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Product Certifications
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Line Rated Current
10 A AC || 5 A DC
Contact Rating (DC)
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Power Consumption
23 VA
Contact Rating (AC)
10 A @ 600V
Compatible with Series
8501 Type X Latching Control Relays
Coil Voltage
110/120V AC
Maximum Operating Temperature
160 Degrees F
Input Voltage
110/120V AC
Minimum Operating Temperature
-40 Degrees F
Number of Pins
14
Mounting Style
Surface
Relay Style
NEMA
Current Rating
10 A
Frequency
50/60 Hz

Description

NEMA Control Relay, Current Rating 10 A, Contact Form 6NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 110/120V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 5.16 in, Body Height 3.5 in, Body Width 2.23 in
