  13. NEMA Fusible Str, Size 0,120V Coil, 12 Enc

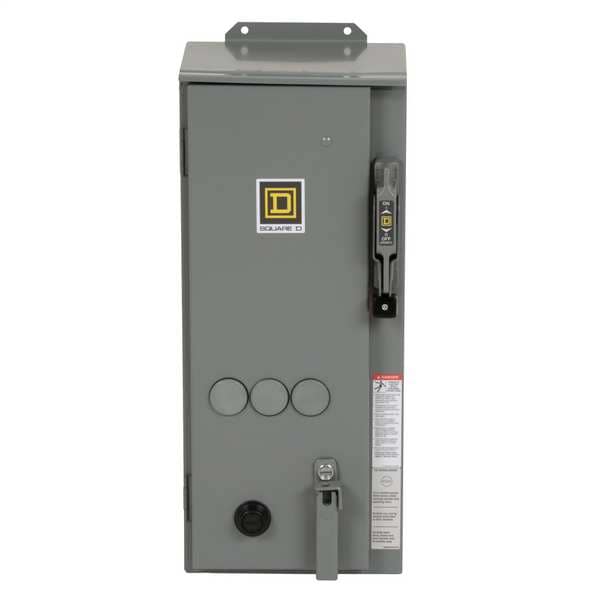

Square D NEMA Fusible Str, Size 0,120V Coil, 12 Enc 8538SBA23V02S - main

NEMA Fusible Str, Size 0,120V Coil, 12 Enc

  • Mfr # 8538SBA23V02S

  • Zoro # G0857166

product price: $1,387.99
/ea
Free Shipping & Returns

Key Features

NEMA Size
0
Amps AC
18
Max. Motor Voltage
600V AC
Coil Volts
120V AC
Fuse Clip Type
Class H
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8538SBA23V02S
Zoro #
G0857166
UPC #
785901743965
Country of Origin
Mexico

Dimensions

NEMA Size
0
Mounting Hole Distance - Width
9.5 in
Overall Height
22.5 in
Overall Width
9.5 in
Mounting Hole Distance - Height
22.5 in
Mounting Hole Diameter
0.31 in
Overall Depth
8.34 in
Frame Size
S

Details

Item
NEMA Combination Starter
Amps AC
18
Max. Motor Voltage
600V AC
Coil Volts
120V AC
Fuse Clip Type
Class H
Enclosure NEMA Rating
12
Short Circuit Protection
Fusible Disconnect
Overload Relay Amp Setting
Melting Alloy
Operator
None
Trip Class
10/20
Pilot Light
No
Control Transformer
No
Thermal Unit Code
D1
HP @ 3 Phase - 480V
5 hp
Hz
50/60
Standards
CSA, REACH, UL Listed
Poles Description
3P
Thermal Overload Type
melting alloy 3
Product Or Component Type
Combination Starter
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Maximum Horse Power Rating
5-5 hp 460 V AC, 3 phase || 5-5 hp 575 V AC, 3 phase
Control Circuit
separate control circuit
Control Type
no control units
Disconnector Device Type
fusible disconnect switch H, 30 A
Motor Starter Type
non reversing
Local Signalling
no indicator
[Ue] Rated Operational Voltage
600 V AC
Nema Degree Of Protection
NEMA 12 painted sheet steel with external reset
Auxiliary Contact Composition
without
Number of Poles
3
Terminal Connection Type
Quick-Disconnect Terminals
Includes Auxiliary Contacts
No
NEMA Enclosure Rating
12
Includes Control Transformer
No
Coil Voltage
120V AC
Number of Auxillary Contacts
0
Horsepower @ Three Phase - 208V AC
3 hp
Series
8538
Starter Style
NEMA
Frequency
50/60 Hz
Phase
Three
Current AC
18 A
Mounting Style
Bracket
NEMA Enclosure Material
Steel
Horsepower @ Three Phase - 480V AC
5 hp
Includes Pilot Light
No
Horsepower @ Three Phase - 600V AC
5 hp
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 240V AC
3 hp
For Fuse Class
Class H
Maximum Voltage Rating
600V AC
Overload Protection Type
Thermal
Control Circuit Voltage
110 V AC 50 Hz; 120 V AC 60 Hz
Horsepower Rating
5 hp 460 V AC, 3 phase; 5 hp 575 V AC, 3 phase

Description

NEMA Combination Starter, Coil Voltage 120V AC, Current AC 18 A, Horsepower @ Three Phase - 600V AC 5 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 12, NEMA Size 0, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form Not Applicable, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20, Horsepower @ Three Phase - 208V AC 3 hp, Control Transformer Voltage Not Applicable, Series 8538
