  7. NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 480V AC, 3 P, Screw Clamp

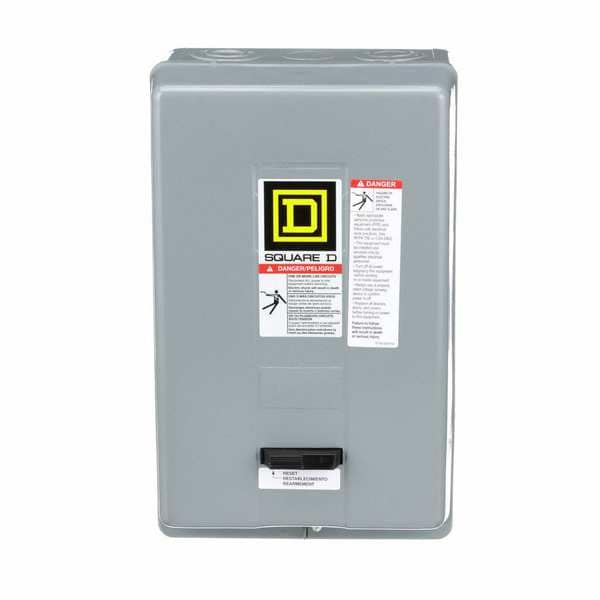

Square D NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 480V AC, 3 P, Screw Clamp 8536SDG1V06H30 - main

NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 480V AC, 3 P, Screw Clamp

  • Mfr # 8536SDG1V06H30

  • Zoro # G1358743

product price:  $1,049.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
480V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8536SDG1V06H30
Zoro #
G1358743
UPC #
785901807063
Country of Origin
Mexico

Dimensions

NEMA Size
2
Overall Depth
6.31 in
Overall Width
7.81 in
Overall Height
12.69 in

Details

Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NO
Coil Voltage
480V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed
Includes
Solid state overload relay
HP @ 3 Phase - 575V
25 hp
Enclosure Type
Painted Steel Sheet
Operating Voltage
600V AC
Horsepower @ Three Phase - 240V AC
15 hp
Phase
Three
Current AC
45 A
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
25 hp
Starter Style
NEMA
Operator
None
Includes Pilot Light
No
Trip Class
10/20
NEMA Enclosure Rating
1
Minimum Overload Relay Current Setting
15 A
Horsepower @ Three Phase - 480V AC
25 hp
Maximum Overload Relay Current Setting
45 A
Maximum Voltage Rating
600V AC
Includes Auxiliary Contacts
No
Overload Protection Type
Electronic
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower Rating
10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC
Control Units
No control units
Control Circuit Type
Common Control Circuit
Short Circuit Current Rating
Circuit-breaker 100 A maximum: 100 kA at 480 V AC; Fuse J 100 A maximum: 100 kA at 600 V AC; Fuse T 100 A maximum: 100 kA at 600 V AC; Fuse RK1 100 A maximum: 100 kA at 600 V AC; Fuse RK5 100 A maximum: 100 kA at 600 V AC
Auxiliary Contacts
Without

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 45 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 15 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 480V AC, Horsepower @ Three Phase - 600V AC 25 hp
