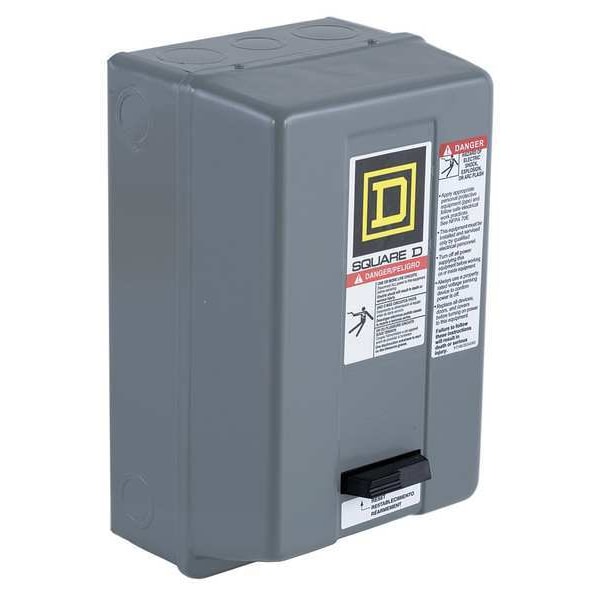

Square D NEMA Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp 8536SAG12V02H30S - main

NEMA Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp

  • Mfr # 8536SAG12V02H30S

  • Zoro # G6056075

product price:  $507.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8536SAG12V02H30S
Zoro #
G6056075
UPC #
785901752202
Country of Origin
Mexico

Dimensions

NEMA Size
00
Overall Width
6 in
Overall Depth
5.56 in
Overall Height
10 in

Details

Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed
Includes
Class 10/20 selectable solid state overload relay
HP @ 3 Phase - 575V
2 hp
Enclosure Type
Painted Steel Sheet
Operating Voltage
600V AC
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
2 hp
Includes Pilot Light
No
Horsepower @ Three Phase - 480V AC
2 hp
Includes Auxiliary Contacts
No
Horsepower @ Three Phase - 208V AC
1 1/2 hp
Maximum Overload Relay Current Setting
9:00 AM
Phase
Three
Operator
None
Starter Style
NEMA
Minimum Overload Relay Current Setting
3 A
Horsepower @ Three Phase - 240V AC
1 1/2 hp
Auxiliary Contact Module Capacity
4
Overload Protection Type
Electronic
NEMA Enclosure Rating
1
Trip Class
10/20
Maximum Voltage Rating
600V AC
Current AC
9:00 AM

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 9 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 3 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC
