  13. NEMA Magnetic Motor Starter, Reversing, 1NO, 120V AC, 3 P, Screw Clamp

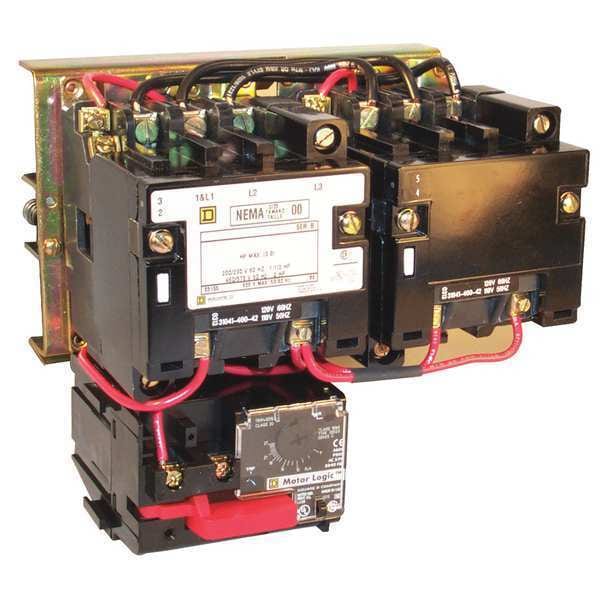

Square D NEMA Magnetic Motor Starter, Reversing, 1NO, 120V AC, 3 P, Screw Clamp 8736SCO8V02H30S - main

NEMA Magnetic Motor Starter, Reversing, 1NO, 120V AC, 3 P, Screw Clamp

  • Mfr # 8736SCO8V02H30S

  • Zoro # G0420156

product price: $1,098.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8736SCO8V02H30S
Zoro #
G0420156
UPC #
785901475941
Country of Origin
Mexico

Dimensions

NEMA Size
1
Overall Width
7.13 in
Overall Depth
5.31 in
Overall Height
6.91 in

Details

Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed
HP @ 3 Phase - 575V
10 hp
Includes
Solid state overload relay
Enclosure Type
Open
Operating Voltage
600V AC
Horsepower @ Three Phase - 600V AC
10 hp
Maximum Voltage Rating
600V AC
Phase
Three
Includes Auxiliary Contacts
No
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Minimum Overload Relay Current Setting
9 A
Overload Protection Type
Electronic
Maximum Overload Relay Current Setting
27 A
Horsepower @ Three Phase - 208V AC
7 1/2 hp
NEMA Enclosure Rating
No Enclosure
Starter Style
NEMA
Includes Pilot Light
No
Current AC
27 A
Frequency
50/60 Hz
Horsepower @ Three Phase - 480V AC
10 hp
Trip Class
10/20
Operator
None
Control Circuit Type
Separate Control Circuit
Control Units
No control units
Short Circuit Current Rating
Circuit-breaker 70 A maximum: 100 kA at 480 V AC; Fuse J 60 A maximum: 100 kA at 600 V AC; Fuse T 60 A maximum: 100 kA at 600 V AC; Fuse RK1 60 A maximum: 100 kA at 600 V AC; Fuse RK5 60 A maximum: 100 kA at 600 V AC
Horsepower Rating
7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC
Auxiliary Contacts
Without
Wiring Mode
3 wires
Mounting Postion
Horizontal

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 27 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 9 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC, Horsepower @ Three Phase - 600V AC 10 hp
