This item is Discontinued.

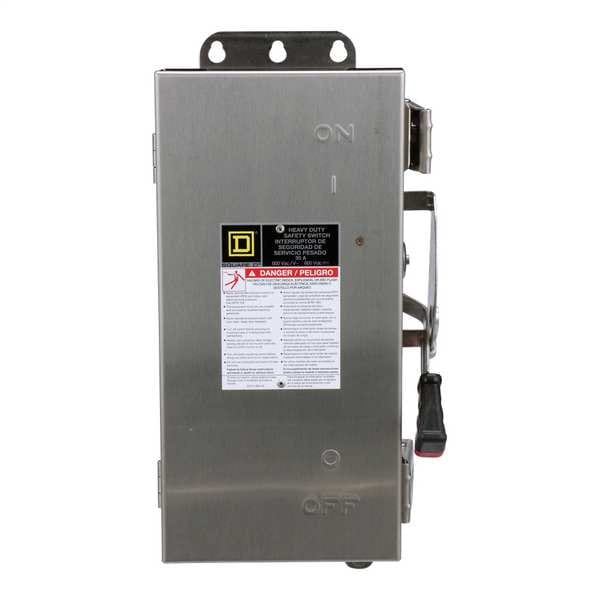

Square D Nonfusible Safety Switch, Heavy Duty, 600V AC, 3PST, 30 A, NEMA 4, 4X, 5 HU361DSEI

Nonfusible Safety Switch, Heavy Duty, 600V AC, 3PST, 30 A, NEMA 4, 4X, 5 (Discontinued)

  • Mfr # HU361DSEI
  • Zoro # G7187932
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HU361DSEI
Zoro #
G7187932
UPC #
785901156529
Country of Origin
United States

Dimensions

Depth
5.8 in
Width
9 in
Height
17.4 in
Enclosure Depth
Less than 6 inches
Enclosure Height
10 to 19 3/4 inches
Enclosure Width
0 to 9 3/4 inches

Details

Item
Safety Switch
Protection Method
Nonfusible
Duty
Heavy
Voltage
600V AC
Phase
3
HP
20 hp @ 600V AC
NEMA Enclosure Type
4, 4X, 5
IP Rating
Not Rated
Number of Wires
3
Number of Poles
3
Contact Form
3PST
Amps AC
30 A
Metallic / Non-Metallic
Metallic
Material of Construction
Stainless Steel
Standards
UL listed
Fusible / Nonfusible
Nonfusible
Includes
Mechanically Interlocked Switch
Enclosure Type
Enclosed
Weight
6 kg
Features
Mercury Free, PVC Free
Gauge/Conductor
12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)
Mounting
Surface
Neutral Assembly Included
No
Extra Features
Mechanically Interlocked Switch
UL 98 Certification
Yes
Horsepower @ 480V AC
20 hp
Enclosure Material
304 Stainless Steel
Housing Material
304 Stainless Steel
Horsepower @ 600V AC
30 hp
Environment
Indoor/Outdoor
Mounting Style
Surface Mount
Includes Electrically Interlocked Switch
Yes
NEMA Enclosure Rating
4, 4X, 5
Current Type
AC
Horsepower @ 240V AC
10 hp
Current Rating
30 A

Description

Safety Switch, Contact Form 3PST, Current Rating 30 A, Depth 5 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 15 in, Horsepower @ 240V AC 10 hp, Horsepower @ 480V AC 20 hp, Horsepower @ 600V AC 30 hp, Housing Material 304 Stainless Steel, Includes Mechanically Interlocked Switch, IP Rating Not Rated, Mounting Style Surface Mount, NEMA Enclosure Rating 4, 4X, 5, Neutral Assembly Included No
