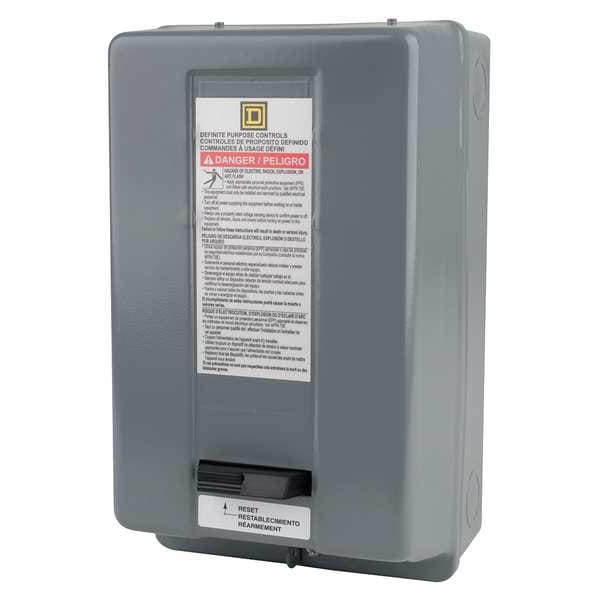

Nonreversing Definite Purpose Magnetic Motor Starter, 1 NEMA Rating, 208 to 240V AC, 2 Poles
Mfr # 8911DPSG42V09
Zoro # G3967896
product price:Â
$
266.99
/ea
Free Shipping & Returns
Key Features
Number of Poles
2
Amps AC
40 A
Enclosure NEMA Rating
1
HP @ 1 Phase - 120V
3 hp
HP @ 1 Phase - 240V
7 1/2 hp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8911DPSG42V09
- Zoro #
- G3967896
- UPC #
- 785901724766
- Country of Origin
- China
Dimensions
- Width
- 6.0 in
- Depth
- 5.56 in
- Height
- 10.0 in
- Overall Height
- 10 in
- Overall Width
- 6 in
- Mounting Hole Distance - Height
- 8.13 in
- Mounting Hole Distance - Width
- 4.13 in
- Overall Depth
- 5.56 in
Description
Definite Purpose Magnetic Motor Starter, Series Class 8911 Type DP, Coil Voltage 208-240V AC, Maximum Voltage Rating 600V AC, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Single Phase - 120V AC 3 hp, Current AC 40 A, Number of Poles 2, NEMA Enclosure Rating 1, Reversing Capability Non-Reversing, Phase Single, Overload Protection Type Melting Alloy, Locked Rotor Load 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 230V AC, Mechanical Operating Durability 500,000, Frequency 50/60 Hz
