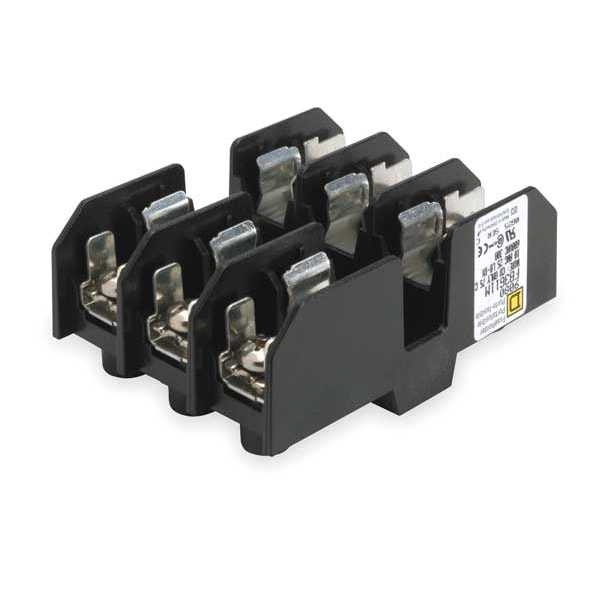

Open Fuse Block, M UL Class, 600V AC/DC Volt Rating, 3 Poles, Wire Leads

  • Mfr # 9080FB3611M

  • Zoro # G1508324

product price:  $22.69
/ea

Key Features

UL Class
M
Series
9080
Number of Poles
3
Voltage Rating
600V AC/DC
Connector Type
Wire Leads
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9080FB3611M
Zoro #
G1508324
UPC #
785901097129
Country of Origin
Korea, Republic of

Dimensions

Wire Size
AWG 14...AWG 10
Body Height
3.12 In.
Height
3.12 in
Length
1.30 in
For Fuse Size
1-1/2 in L x 13/32 in dia
Width
2.35 in
Overall Depth
1.29 in
Overall Width
2.35 in
For Fuse Length
1 1/2 in
Overall Length
1.29 in
For Fuse Width
13/32 in
Wire Size - Minimum
14 AWG
Wire Size - Maximum
10 AWG
Overall Height
3.13 in
Wire Rope Length
1.29 in

Details

Item
Open Fuse Block
UL Class
M
Series
9080
Number of Poles
3
Voltage Rating
600V AC/DC
Connector Type
Wire Leads
Mounting Style
Panel
Fuse Block Design
Open
Body Material
Thermoplastic
For Fuse Series
M
Standards
CE, CSA File 70360 Class 6225 01, UL Recognized E40747 CCN IZLT2
Fuse Type
Midget
Features
This Three Pole Fuse Holder will Accept Class M Fuses
Special Features
Mercury Free, Toxic Heavy Metal Free, Warranty 18 Months
RoHS Compliant
Yes
Product Certifications
UL recognized E40747 CCN IZLT2; CSA file 70360 class 6225 01; CE
Terminal Tightening Torque
screw terminals 25 lbf.in (2.82 N.m) AWG 14 to AWG 10 copper
Operating Temperature
-40 to 257°F (-40 to 125°C)
Wire Range
14 AWG to 10 AWG
Fuse Block or Holder DC Voltage Rating
Not Rated
DC Voltage Rating
600 V AC/DC
AC Voltage Rating
600 V AC/DC
Current - Maximum
30 A
Includes Auxiliary Contact
Yes

Description

Fuse Block, Fuse UL Class Midget, Number of Poles 3, For Fuse Size 1 1/2 in L x 13/32 in dia, Series 9080, Fuse Block Design Not Applicable, Mounting Style Bolt-Down, Body Material Thermoplastic, Height 3.12 In., Width 2.72 In., Length 1.3 in, Features This Three Pole Fuse Holder will Accept Class M Fuses, Standards CE, CSA File 70360 Class 6225 01, UL Recognized E40747 CCN IZLT2
