  13. Panel Mount, Power Relay, 30 A, Screw

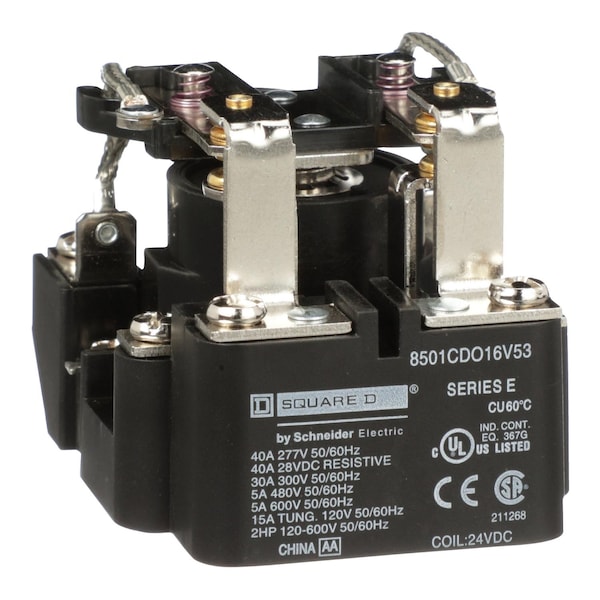

Square D Panel Mount, Power Relay, 30 A, Screw 8501CDO16V53 - main

Panel Mount, Power Relay, 30 A, Screw

  • Mfr # 8501CDO16V53

  • Zoro # G0847309

product price: $109.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
DPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CDO16V53
Zoro #
G0847309
UPC #
785901052197
Country of Origin
China

Dimensions

Body Depth - Relay
2.31 in
Body Width - Relay
2-1/2 in
Body Height - Relay
3.12 in
Width
2.5 in
Depth
2.31 in
Height
3.12 in

Details

Item
Power Relay
Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
DPDT
Contact Rating (AC)
30 A @ 600 V AC
Standards
UL listed file E78351 CCN NLDX; CSA; CE
Power Consumption - Relay
2 W
Status Indicator
No Indicator
Device Short Name
type C
Awg Gauge
AWG 10 copper
Maximum Switching Voltage
600 V AC
Hold-In Power Consumption In W
2-2 W
Phase
1 phase
Switch Function
DPDT
Ambient Air Temperature For Operation
-22-140°F
Line Rated Current
30 A
Tightening Torque
11-15 lbf.in
Rated Power In Hp
2.0 hp
Connections - Terminals
screw clamp terminal
Device Application
suited for controlling small single phase motors and other light loads
Contacts Type And Composition
2 NO/2 NC
Terminal Tightening Torque
11 to 15 lbf.in (1.24 to 1.69 N.m)
Class Number
8501
Control Circuit Voltage
24 V DC
Switching Voltage
600 V AC
Wire Range
AWG 10 copper
Operating Temp. Range
-22-140°F
Terminal Connects
Screw clamp terminal
Contact Composition
2 NO/2 NC
Series
type C
Ambient Temperature Range - Operational
-22 to 140°F (-30 to 60°C)

Description

Relay, Status Indicator No Indicator
