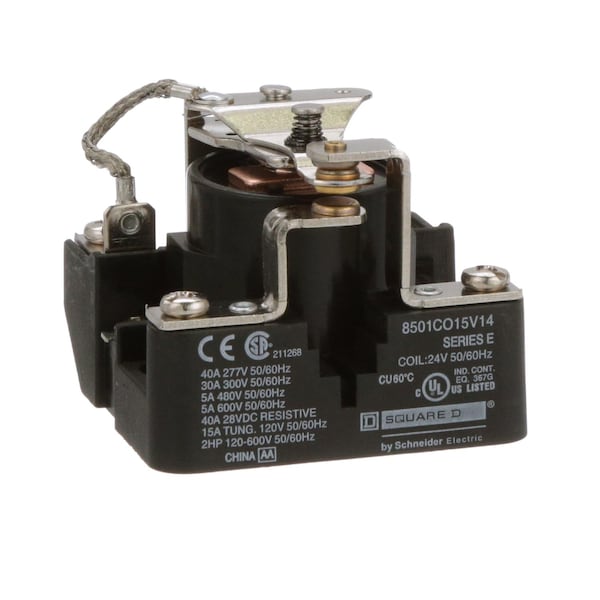

Square D Panel Mount, Power Relay, 30 A, Screw 8501CO15V14 - main

Panel Mount, Power Relay, 30 A, Screw

  • Mfr # 8501CO15V14

  • Zoro # G0571947

product price: $65.19
/ea

Key Features

Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO15V14
Zoro #
G0571947
UPC #
785901052098
Country of Origin
China

Dimensions

Body Depth - Relay
2.18 in
Body Width - Relay
2-1/2 in
Body Height - Relay
2.43 in
Height
2.43 in (61.72 mm)
Width
2.5 in (63.50 mm)
Depth
2.18 in (55.37 mm)

Details

Item
Power Relay
Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
SPDT
Power Consumption - Relay
10 VA
Standards
UL listed file E78351 CCN NLDX; CSA; CE
Operating Temp. Range
-22-122°F
Series
type C
Switching Voltage
600 V AC
Wire Range
AWG 10 copper
Terminal Tightening Torque
11 to 15 lbf.in (1.24 to 1.69 N.m)
Phase
1 phase
Terminal Connects
Screw clamp terminal
Control Circuit Voltage
24 V AC 50/60 Hz
Ambient Temperature Range - Operational
-22 to 122°F (-30 to 50°C)
Contact Composition
1 NO/1 NC
Class Number
8501
Switch Function
SPDT
Device Application
Suited for controlling small single phase motors and other light loads
Status Indicator
No Indicator
Tightening Torque
11-15 lbf.in
Ambient Air Temperature For Operation
-22-122°F
Hold-In Power Consumption In Va
10-10 VA

Description

Relay, Status Indicator No Indicator
