Shop SQUARE D

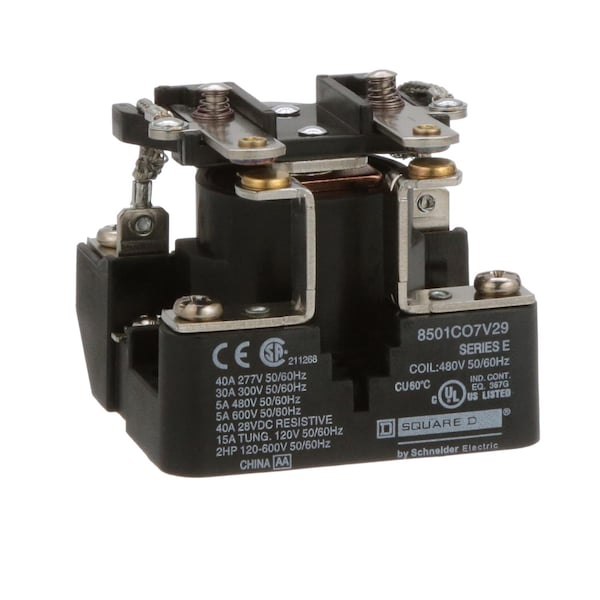

Panel Mount, Power Relay, 30 A, Screw

  • Mfr # 8501CO7V29

  • Zoro # G0845796

product price:  $67.89
/ea

Key Features

Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
480V AC
Current Rating
30 A
Contact Form
2 NO; DPST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8501CO7V29
Zoro #
G0845796
UPC #
785901059592
Country of Origin
China

Dimensions

Body Width - Relay
2-1/2 in
Body Height - Relay
2.43 in
Body Depth - Relay
2-1/4 in
Depth
2.25 in
Width
2.5 in

Details

Item
Relay
Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
480V AC
Current Rating
30 A
Contact Form
2 NO; DPST
Standards
UL listed file E78351 CCN NLDX; CSA; CE
Power Consumption - Relay
10 VA
Series
type C
Switching Voltage
600 V AC
Operating Temp. Range
-22-122°F
Status Indicator
No Indicator
Hold-In Power Consumption In Va
10-10 VA
Awg Gauge
AWG 10 copper
Connections - Terminals
screw clamp terminal
Tightening Torque
11-15 lbf.in
Ambient Air Temperature For Operation
-22-122°F
Rated Power In Hp
2.0 hp
Switch Function
DPST
Contacts Type And Composition
2 NO
Device Application
suited for controlling small single phase motors and other light loads
Phase
1 phase
Contact Rating (AC)
30 A @ 300 V, 5 A @ 600 V

Description

Relay, Status Indicator No Indicator
