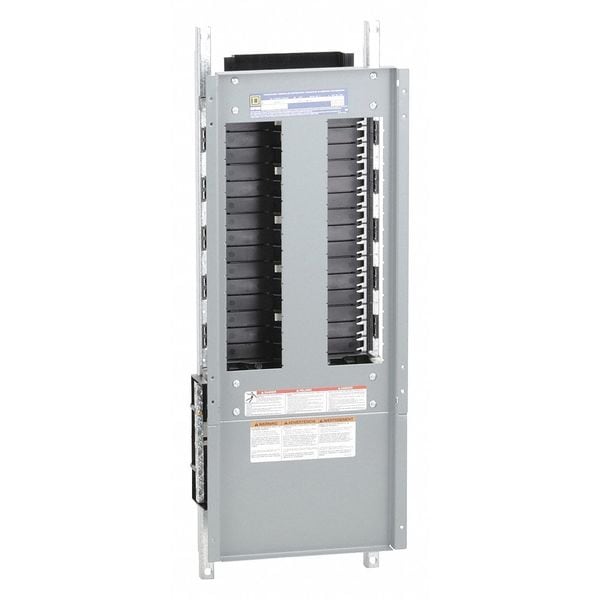

Panelboard Interior, EDB, EDG, EDJ, 30 Spaces, 250A, 277/480V, Convertible Main Lug, 3 Phase

  • Mfr # NF430L2

  • Zoro # G0413831

CAD Available
product price:
$
1,863.96
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
250 A
Voltage
277/480V
Phase
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NF430L2
Zoro #
G0413831
UPC #
785901871477
Country of Origin
Korea, Republic of

Dimensions

Height
33 in
Width
20 in
Depth
5-3/4 in

Details

CAD Available
Yes
Item
Panelboard Interior
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
250 A
Voltage
277/480V
Phase
3
Short Circuit Current Rating
100000 RMS Symmetrical
Series
EDB, EDG, EDJ
Recommended Surface Cover
G0548021 for Main Lug, G7464886 for Main Breaker
Recommended Flush Cover
G2427844 for Main Lug, G1858053 for Main Breaker
Bus Material
Aluminum
Recommended Enclosure
1D700 for Main Breaker, 6B429 for Main Lug
Circuit Breaker Type
Bolt-On
Recommended Ground Bar Kit
1D370
Standards
CSA C22.2, UL 67
Main Circuit Breaker Adapter Kit
22P070, Mfr. No. N250MKC
For Use With
NF Circuit Breakers
Circuit Breaker Series
EDB, EDG, EDJ
Features
Mercury Free
Connections - Terminals
Lug line AWG 6 to 350 kcmil aluminium; Lug neutral AWG 6 to 350 kcmil aluminium
Tightening Torque
40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 in² (13.30 to 177.3 mm²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.30 to 126.7 mm²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 in² (107.2 to 152 mm²) (AWG 4 to 300 kcmil)
Rated Interrupted Current
65 kA
Wiring Configuration
4-wire

Description

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 250 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 277/480YV AC, Phase Three, Bus Material Aluminum, Recommended Enclosure 1D700 for Main Breaker, 6B429 for Main Lug, Circuit Breaker Type Bolt-On, For Use With NF Circuit Breakers, Height 33 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 22P070, Mfr. No. N250MKC
