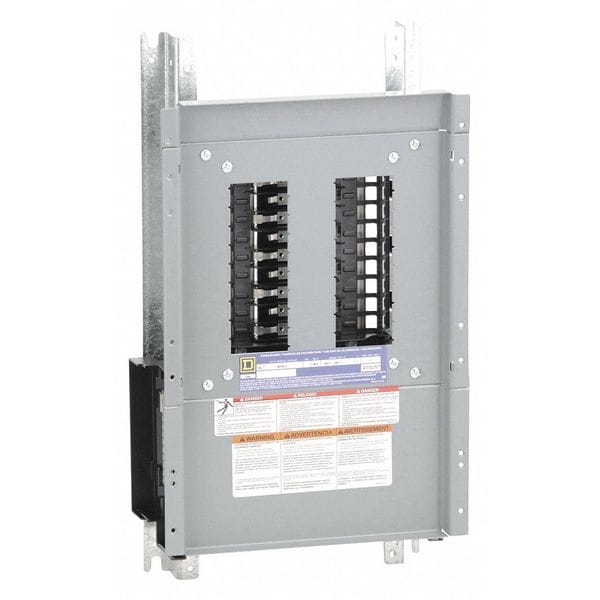

Panelboard Interior, QHB, QOB, QOB-VH, 18 Spaces, 100A, 120/240V AC, Convertible Main Lug, 1 Phase
Mfr # NQ18L1C
Zoro # G2912427
CAD Available
product price: $385.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
18
Amps
100A
Voltage
120/240V AC
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
NQ18L1C
Zoro #
G2912427
UPC #
785901501992
Country of Origin
Mexico
Dimensions
Height
21 in
Width
10-7/16 in
Depth
5-3/4 in
Details
Item
Panelboard Interior
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
18
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
100000 RMS Symmetrical
Series
QHB, QOB, QOB-VH
Recommended Surface Cover
G1358217 for Main Lug, G0765414 for Main Breaker
Recommended Flush Cover
G1760071 for Main Lug, G7481634 for Main Breaker
Bus Material
Copper
Recommended Enclosure
1D687 for Main Lug, 6B429 for Main Breaker
Recommended Ground Bar Kit
5B716
Circuit Breaker Type
Plug In Miniature
Standards
CSA Approved, UL Listed
For Use With
QO Mini Circuit Breaker
Circuit Breaker Series
QHB, QOB, QOB-VH
Features
Mercury Free
CAD Available
Yes
Description
Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 100 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 18, Voltage 120/240V AC, Phase Single, Bus Material Copper, Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 21 in, Depth 5 3/4 in, Width 10 7/16 in, Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker
