  9. Panelboard Interior, QHB, QOB, QOB-VH, 18 Spaces, 100A, 120/240V AC, Convertible Main Lug, 3 Phase

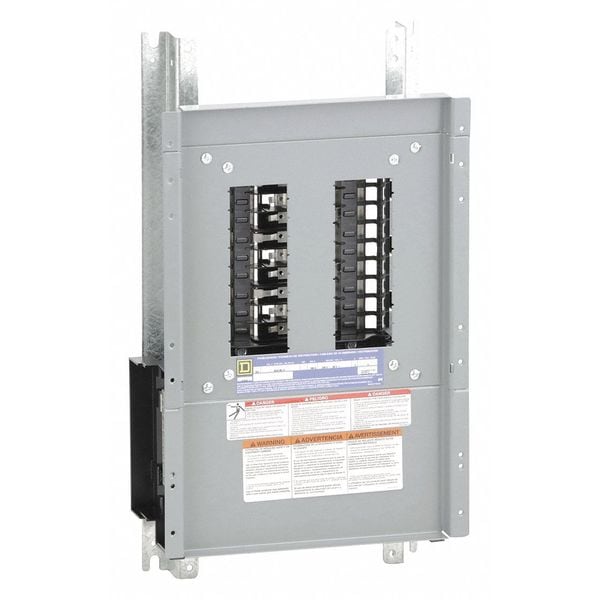

Square D Panelboard Interior, QHB, QOB, QOB-VH, 18 Spaces, 100A, 120/240V AC, Convertible Main Lug, 3 Phase NQ418L1C - main

CAD Drawings

Download CAD Files

Panelboard Interior, QHB, QOB, QOB-VH, 18 Spaces, 100A, 120/240V AC, Convertible Main Lug, 3 Phase

  • Mfr # NQ418L1C

  • Zoro # G1954391

CAD Available
product price: $424.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Convertible Main Lug
Voltage
120/240V AC
Short Circuit Current Rating
100000 RMS Symmetrical
Height
27 in
Width
20 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NQ418L1C
Zoro #
G1954391
UPC #
785901502173
Country of Origin
Mexico

Dimensions

Height
27 in
Width
20 in
Depth
5-3/4 in

Details

Item
Panelboard Interior
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
18
Amps
100A
Voltage
120/240V AC
Phase
3
Short Circuit Current Rating
100000 RMS Symmetrical
Series
QHB, QOB, QOB-VH
Recommended Surface Cover
G1358217 for Main Lug, G0765414 for Main Breaker
Recommended Flush Cover
G1760071 for Main Lug, G7481634 for Main Breaker
Bus Material
Copper
Recommended Enclosure
1D687 for Main Lug, 6B429 for Main Breaker
Circuit Breaker Type
Plug In Miniature
Standards
CSA Approved, UL Listed
Recommended Ground Bar Kit
5B716
For Use With
QO Mini Circuit Breaker
Circuit Breaker Series
QHB, QOB, QOB-VH
Features
Mercury Free
Wiring Configuration
4-wire
Rated Interrupted Current
10 kA; 22 kA; 65 kA
Connections - Terminals
Lug line AWG 6 to AWG 2/0 aluminium; Lug neutral AWG 6 to AWG 2/0 aluminium
Tightening Torque
40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 in² (13.30 to 177.3 mm²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.30 to 126.7 mm²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 in² (107.2 to 152 mm²) (AWG 4 to 300 kcmil)
CAD Available
Yes

Description

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 100 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 18, Voltage 120/208 to 240V AC, Phase Three, Bus Material Copper, Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 27 in, Depth 5 3/4 in, Width 10 7/16 in, Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker
