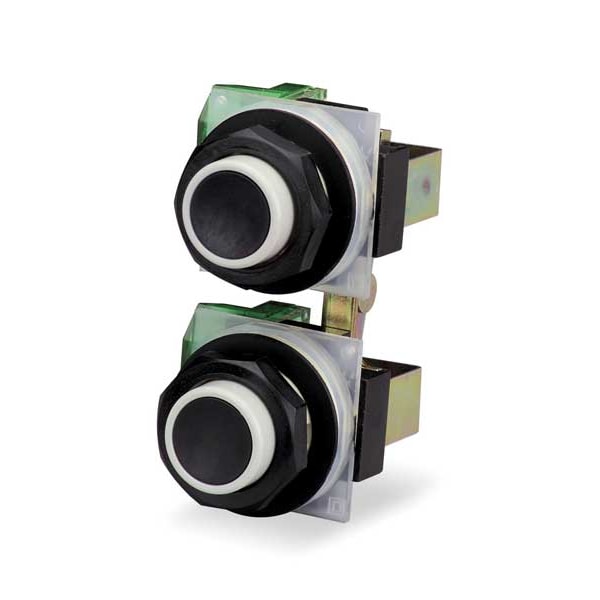

Square D Pendant Pushbutton, 30mm, Maintained 9001SKRU11 - main

Pendant Pushbutton, 30mm, Maintained

  • Mfr # 9001SKRU11

  • Zoro # G1277884

product price: $149.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Contact Form
1NO/1NC
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508
For Use With
Type KA Contact Blocks
Type of Operator
Extended Button/Extended Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKRU11
Zoro #
G1277884
UPC #
785901526834
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Pendant Push Button
Color
Black
Contact Form
1NO/1NC
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508
For Use With
Type KA Contact Blocks
Type of Operator
Extended Button/Extended Button
Head Material
Plastic
Mechanical Interlock
Yes
Action
Maintained/Maintained
Number of Operators
2
Contact Rating
10A @ 600V
IP Rating
IP66
Terminal Connection
Screw Clamp
Bezel Material
Plastic
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Mechanical Durability
5000000 cycles
Ip Degree Of Protection
IP66
Device Presentation
basic element
Device Short Name
9001SK
Contact Operation
standard
Product Or Component Type
push-button
Operator Voltage Rating - Maximum
600 V AC
Head Color
Black
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Product Type
Push Button Operators
Operating Temperature - Minimum
-22 Degrees F
Maintained Action Release
Push/Push
Push Button Style
Extended
Series
9001SK
Operator Illumination
Non-Illuminated
Mechanical Operating Durability
5.00 x 10^6
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operating Temperature - Maximum
140 Degrees F
Number of Indicator Lights
0
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

Description

Pendant Push Button, 30 mm, Maintained/Maintained Action, Extended Button/Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Color Black, Contact Rating 10A @ 600V, Number of Operators 2, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, Terminal Connection Screw Clamp
